48242-0001

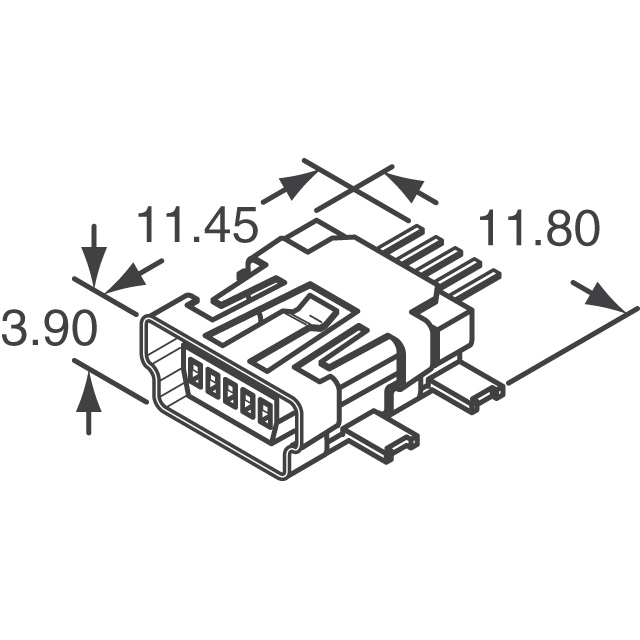

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 48242-0001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 48242-0001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 48242-0001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT 5POS MINI B R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2100 pcs | ||||
|---|---|---|---|---|---|
| $0.136 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 48242-0001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT 5POS MINI B R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 138898 pcs | Data sheet | 48242-0001 |
| Category | Connectors, Interconnects | Voltage - Rated | 100VAC/DC |
| Termination | Solder | Specifications | USB 2.0 OTG |
| Shielding | Shielded | Shell/Shielding Material | Steel, Stainless |
| Series | 48242 | Packaging | Tape & Reel (TR) |
| Other Names | 048242-0001 048242-0001-C 0482420001 0482420001-C 48242-0001-C 482420001 482420001-C WM17140TR |
Operating Temperature | -20°C ~ 85°C |
| Number of Ports | 1 | Number of Contacts | 5 |
| Mounting Type | Board Cutout, Surface Mount, Right Angle | Mounting Feature | Horizontal, Mid Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | Black | Ingress Protection | - |
| Gender | Receptacle | Features | Solder Retention |
| Detailed Description | USB - mini B USB 2.0 OTG Receptacle Connector 5 Position Board Cutout, Surface Mount, Right Angle | Current Rating | 1A, 1.8A |
| Contact Finish | Gold | Connector Type | USB - mini B |
