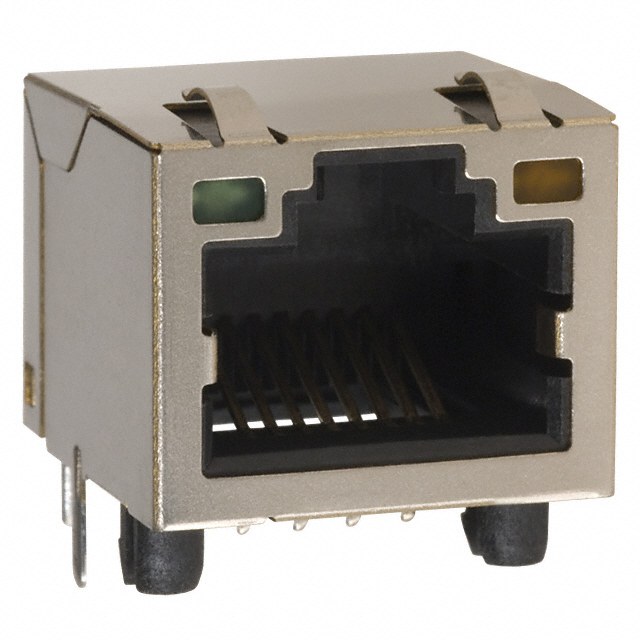

48146-0011
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 48146-0011 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 48146-0011 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 48146-0011 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN MOD JACK 8P8C R/A SHIELDED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 48146-0011 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN MOD JACK 8P8C R/A SHIELDED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4944 pcs | Data sheet | 48146 SeriesModular Jacks Brochure |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Series | 48146 | Ratings | Cat5 |
| Packaging | Tray | Other Names | 048146-0011 048146-0011-E 0481460011 0481460011-E 48146-0011-E 481460011 481460011-E WM5448 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Ports | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| LED Color | Green - Amber | Ingress Protection | - |
| Housing Material | Thermoplastic | Features | Board Lock |
| Detailed Description | Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5 | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 50.0µin (1.27µm) | Contact Finish | Gold |
| Connector Type | Jack |
