44769-1202

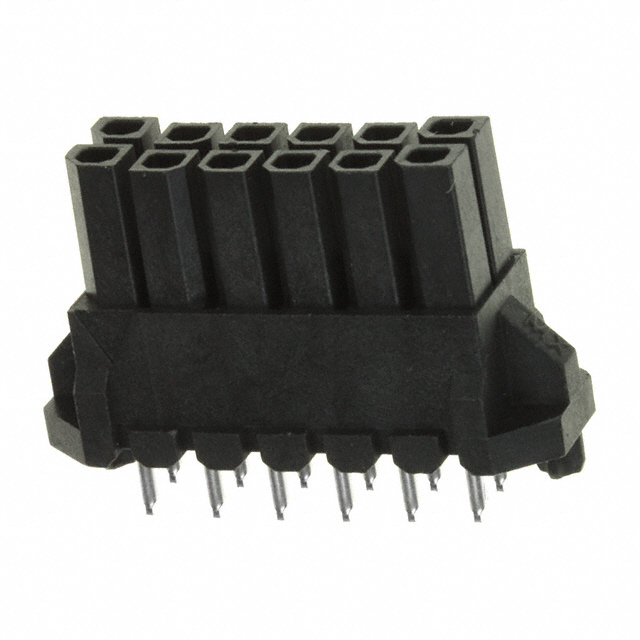

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 44769-1202 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 44769-1202 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 44769-1202 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HDR RCPT 12POS 3MM VERT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.538 | $1.475 | $1.229 | $1.045 | $0.891 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 44769-1202 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HDR RCPT 12POS 3MM VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37772 pcs | Data sheet | 44769-xx0xMicro-Fit BMI Spec |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Micro-Fit 3.0 BMI 44769 | Row Spacing - Mating | 0.118" (3.00mm) |
| Pitch - Mating | 0.118" (3.00mm) | Packaging | Tray |
| Other Names | 044769-1202 044769-1202-E 0447691202 0447691202-E 44769-1202-E 44769-1202-TR65 447691202 447691202-E WM1964 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 16.86mm | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.535" (13.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 12 Position Receptacle Connector 0.118" (3.00mm) Through Hole Gold |
| Current Rating | 5A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.134" (3.40mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Telecommunications |
