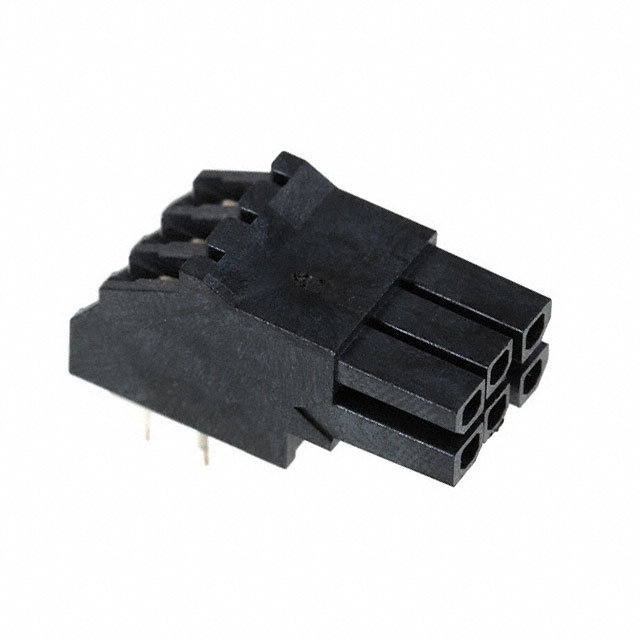

44764-0602
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 44764-0602 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 44764-0602 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 44764-0602 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 6POS 3MM R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.987 | $0.948 | $0.79 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.671 | $0.573 | $0.513 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 44764-0602 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 6POS 3MM R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61113 pcs | Data sheet | 44764-xx0x DrawingMicro-Fit BMI Spec |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Micro-Fit 3.0 BMI 44764 | Row Spacing - Mating | 0.118" (3.00mm) |
| Pitch - Mating | 0.118" (3.00mm) | Packaging | Tray |
| Other Names | 044764-0602 044764-0602-E 0447640602 0447640602-E 44764-0602-E 44764-0602-TR170 447640602 447640602-E WM1989 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.402" (10.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 6 Position Receptacle Connector 0.118" (3.00mm) Through Hole, Right Angle Gold |
| Current Rating | 5A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.155" (3.94mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Telecommunications |
