44432-1601

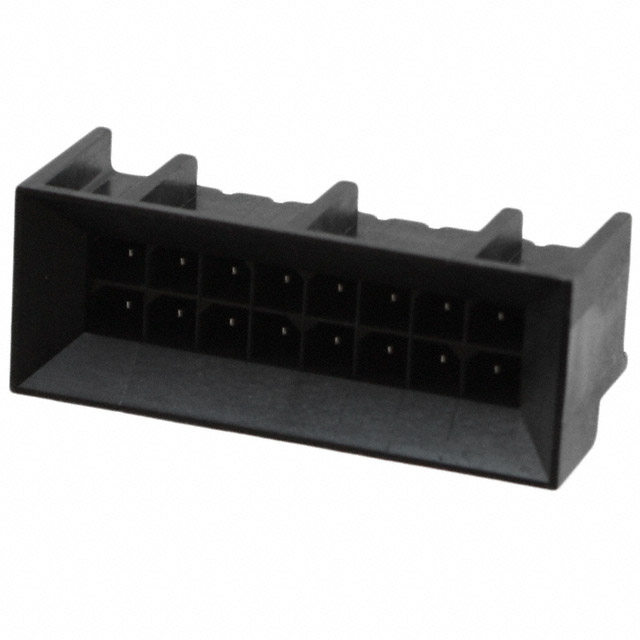

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 44432-1601 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 44432-1601 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 44432-1601 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 16POS 3MM VERT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.016 | $0.974 | $0.811 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.69 | $0.588 | $0.527 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 44432-1601 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 16POS 3MM VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64015 pcs | Data sheet | 44432-xx0xMicro-Fit BMI Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 BMI 44432 |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0444321601 44432-1601-TR60 444321601 WM1973 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.457" (11.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 16 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Medical, Military, Telecommunications |
