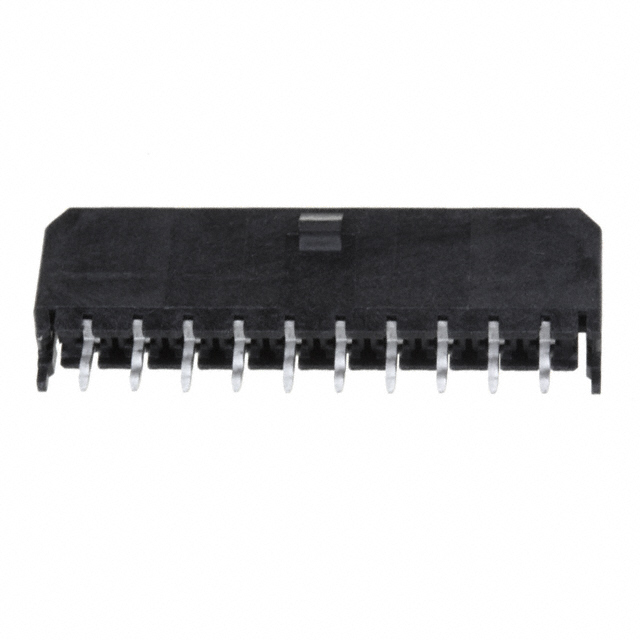

43650-1016
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 43650-1016 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 43650-1016 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 43650-1016 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 10POS 3MM VERT GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.755 | $0.687 | $0.588 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.49 | $0.42 | $0.373 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 43650-1016 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 10POS 3MM VERT GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90207 pcs | Data sheet | 43650, 43655 Series Pkg Drawing43650-1016 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 43650 |
| Row Spacing - Mating | - | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0436501016 43650-1016-TR54 436501016 WM2480 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 17.56mm | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.390" (9.91mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 10 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Medical, Military, Telecommunications |
