39870-0109

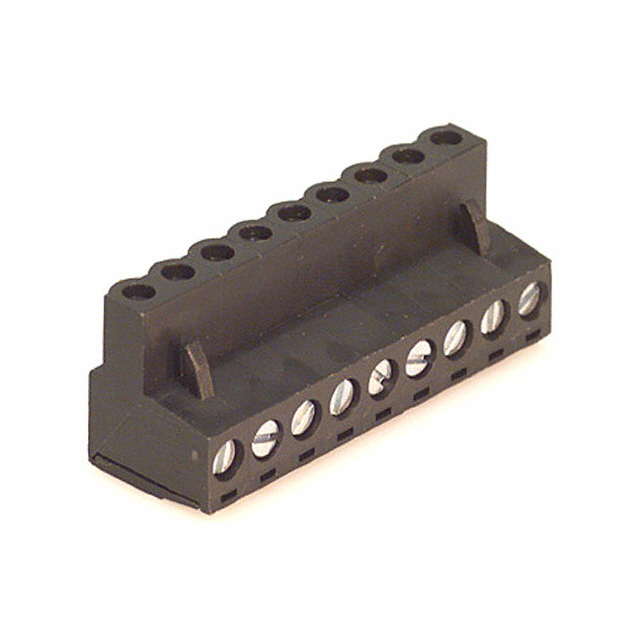

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 39870-0109 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 39870-0109 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 39870-0109 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK PLUG 9POS STR 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 39870-0109 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK PLUG 9POS STR 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4038 pcs | Data sheet | 39870-0109 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screw - Rising Cage Clamp |
| Series | Eurostyle 39870 | Screw Size | M3 |
| Positions Per Level | 9 | Plug Wire Entry | 180° |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 039870-0109 039870-0109-E 0398700109 0398700109-E 39870-0109-E 398700109 398700109-E 870509 WM5869 |
Operating Temperature | 110°C |
| Number of Positions | 9 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.587" (14.91mm) | Ingress Protection | - |
| Housing Material | Thermoplastic | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 9 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Phosphor Bronze | Color | Black |
