39860-0502

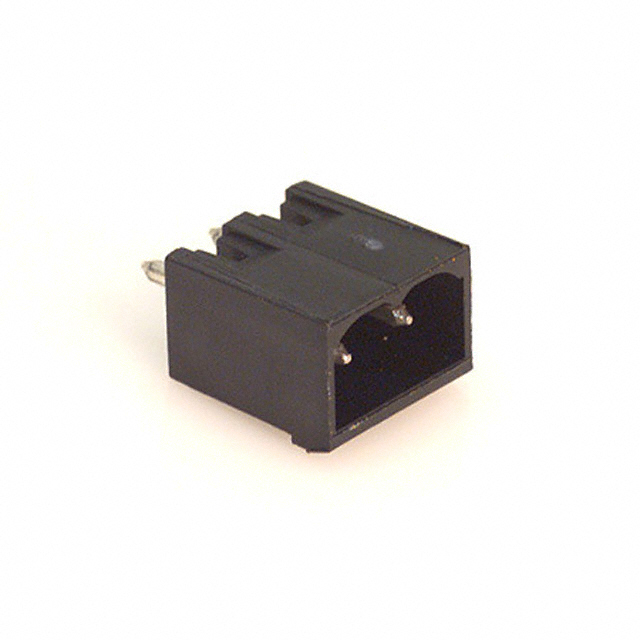

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 39860-0502 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 39860-0502 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 39860-0502 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK HDR 2POS VERT 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 39860-0502 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4838 pcs | Data sheet | 39860-0502 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Eurostyle 39860 | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 039860-0502 039860-0502-E 0398600502 0398600502-E 39860-0502-E 398600502 398600502-E 861602 WM5846 |
Operating Temperature | 110°C |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.470" (11.94mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | Vertical |
| Features | - | Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | 0.170" (4.32mm) | Contact Mating Finish | Tin |
| Contact Material | Brass | Color | Black |
