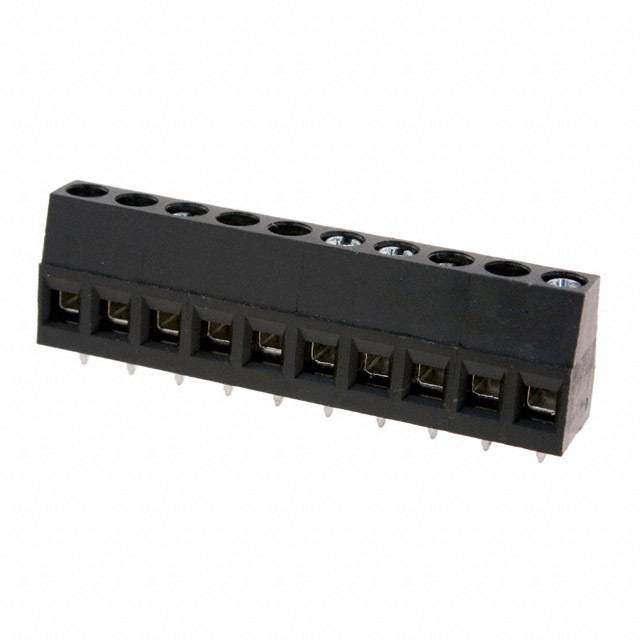

39544-3010
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 39544-3010 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 39544-3010 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 39544-3010 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN TERMINAL BLOCK 10POS 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.825 | $1.391 | $1.303 | $1.158 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.133 | $1.045 | $0.944 | $0.837 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 39544-3010 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN TERMINAL BLOCK 10POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45074 pcs | Data sheet | 39544-yyyy |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 12-30 AWG | Voltage | 300V |
| Torque - Screw | 0.51 Nm (4.5 Lb-In) | Series | Eurostyle ESE 39544 |
| Screw Thread | M3 | Screw Material - Plating | Steel - Zinc Plated |
| Positions Per Level | 10 | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 039544-3010 039544-3010-E 0395443010 0395443010-E 39544-3010-E 395443010 395443010-E WM7859 |
| Operating Temperature | -40°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Features | - | Detailed Description | 10 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole |
| Current | 15A | Contact Material - Plating | Brass - Tin Plated |
| Color | Black | Clamp Material - Plating | Brass - Nickel Plated |
