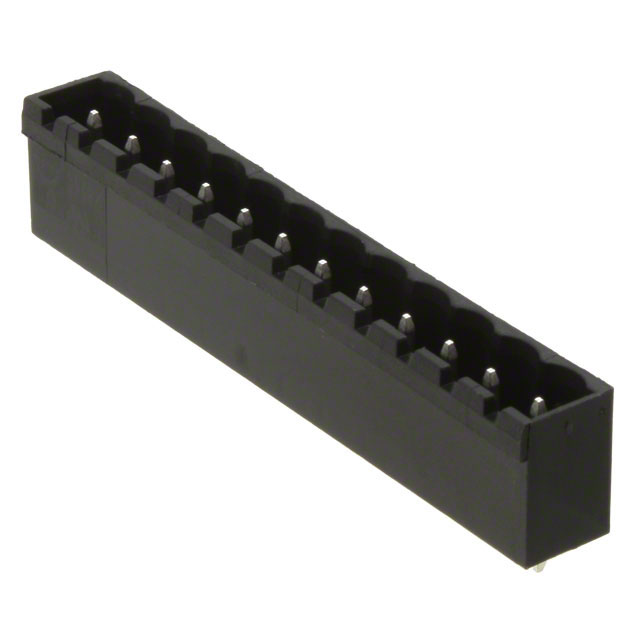

39521-1012
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 39521-1012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 39521-1012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 39521-1012 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK HDR 12POS VERT 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.336 | $1.281 | $1.068 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.908 | $0.774 | $0.694 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 39521-1012 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK HDR 12POS VERT 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54261 pcs | Data sheet | 39521(1,6)yyy |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Eurostyle ESE 39521 | Screw Size | - |
| Positions Per Level | 12 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 039521-1012 039521-1012-E 0395211012 0395211012-E 39521-1012-E 395211012 395211012-E WM7808 |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 12 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.470" (11.94mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | 0.130" (3.30mm) |
| Contact Mating Finish | Tin | Contact Material | Brass |
| Color | Black |
