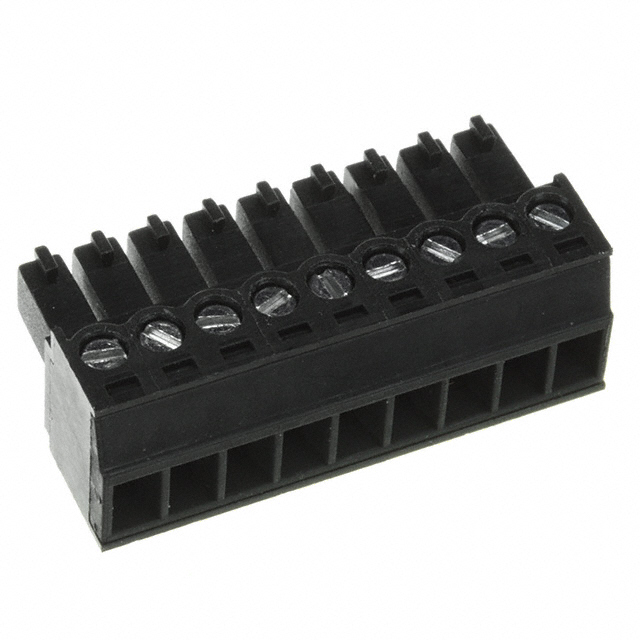

39500-0009
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 39500-0009 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 39500-0009 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 39500-0009 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK PLUG 9POS STR 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 990 pcs | ||||
|---|---|---|---|---|---|
| $0.519 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 39500-0009 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK PLUG 9POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68756 pcs | Data sheet | 39500-yyyy |
| Category | Connectors, Interconnects | Wire Strip Length | 6.5mm |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | 16-30 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.23 Nm (2.0 Lb-In) | Termination Style | Screw - Rising Cage Clamp |
| Series | Eurostyle ESE 39500 | Screw Size | - |
| Positions Per Level | 9 | Plug Wire Entry | 180° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 039500-0009 039500-0009-E 0395000009 0395000009-E 39500-0009-E 395000009 395000009-E WM7739 |
Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 9 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.440" (11.18mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | - | Features | - |
| Detailed Description | 9 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) | Current - UL | 8A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
| Color | Black |
