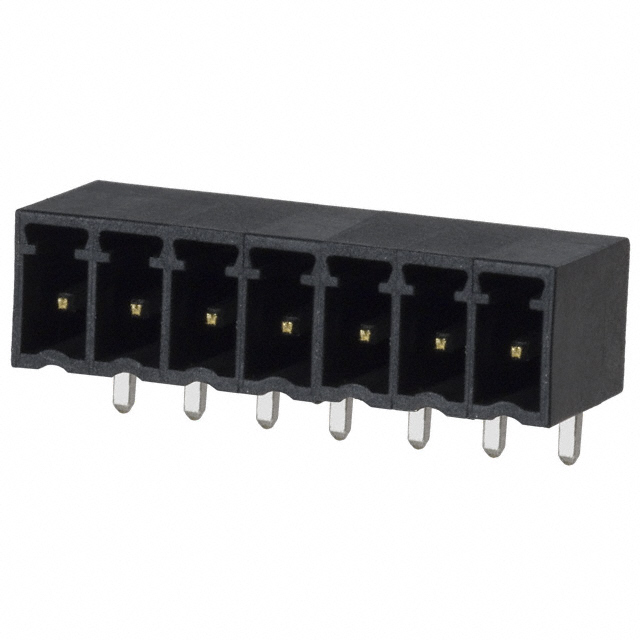

39355-0007
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 39355-0007 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 39355-0007 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 39355-0007 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK HDR 7POS 90DEG 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 39355-0007 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK HDR 7POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5277 pcs | Data sheet | 39355 Series |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Eurostyle 39355 | Screw Size | - |
| Positions Per Level | 7 | Plug Wire Entry | - |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 039355-0007 039355-0007-P 0393550007 0393550007-P 351907 39355-0007-P 393550007 393550007-P WM5648 |
Operating Temperature | 140°C |
| Number of Positions | 7 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.280" (7.10mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA46), Nylon 4/6 | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole |
| Current - UL | 10A | Current - IEC | - |
| Contact Tail Length | 0.136" (3.45mm) | Contact Mating Finish | Tin |
| Contact Material | Brass | Color | Black |
