39-29-5103
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 39-29-5103 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 39-29-5103 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 39-29-5103 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

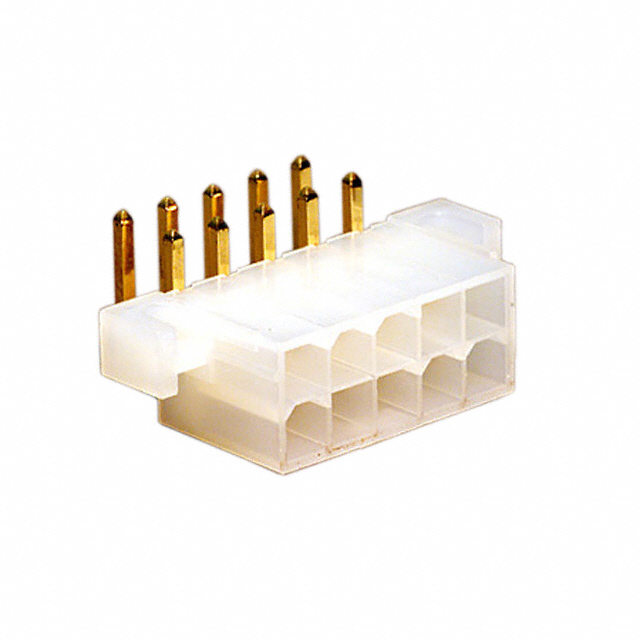

| Description | CONN HEADER 10POS 4.2MM R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.199 | $1.149 | $0.958 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.814 | $0.694 | $0.622 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 39-29-5103 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 10POS 4.2MM R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58800 pcs | Data sheet | PK-5569-002 Pkg Spec39-29-51035556-001 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Jr 5569 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0039295103 39-29-5103-P 39295103 5569-10AG1 WM3924 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.378" (9.60mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial, Telecommunications |
