26-62-4051

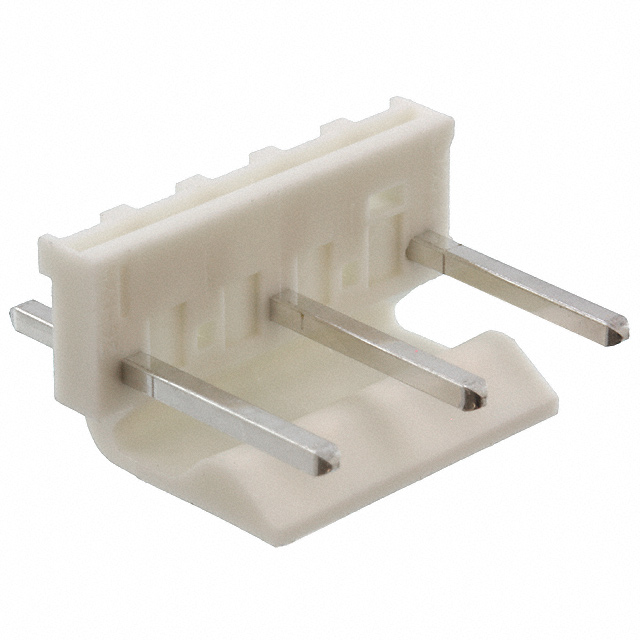

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 26-62-4051 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 26-62-4051 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 26-62-4051 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN KK 156 HDR FRLK 5POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.242 | $0.225 | $0.173 | $0.15 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.124 | $0.109 | $0.101 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 26-62-4051 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN KK 156 HDR FRLK 5POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 186172 pcs | Data sheet | 0026624051 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 1 Wall | Series | KK 41791 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.720" (18.29mm) |
| Other Names | 0026-62-4051 002662-4051 0026624051 0026624051-ND 26624051 41791-0087 WM9418 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | 3 |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.446" (11.33mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 5 position 0.156" (3.96mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.140" (3.56mm) | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
