22-12-2061

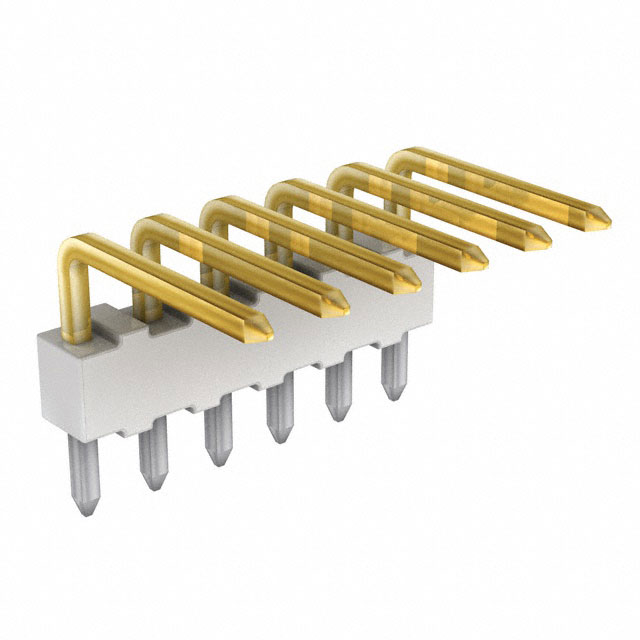

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22-12-2061 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 22-12-2061 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 22-12-2061 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 6POS .100 R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.402 | $0.354 | $0.305 | $0.25 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.222 | $0.194 | $0.185 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 22-12-2061 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 6POS .100 R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 121961 pcs | Data sheet | 22-12-206110-07 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | KK 4094 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0022-12-2061 0022-12-2061-P 0022122061 0022122061-P 22-12-2061-P 22122061 22122061-P A-4094-06A241 WM2737 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.130" (3.30mm) | Insulation Color | White |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.124" (3.15mm) | Contact Length - Mating | 0.369" (9.37mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Telecommunications |
