2065600100

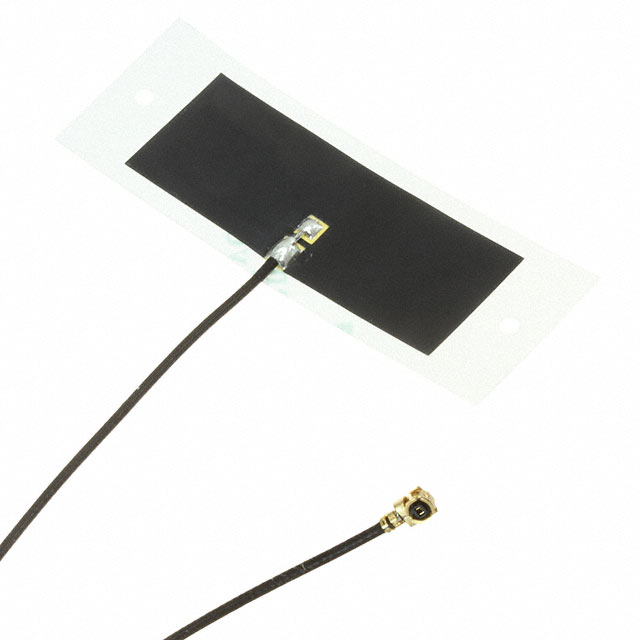

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2065600100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2065600100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2065600100 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | RF ANT 1.561/1.575GHZ FLAT PATCH |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | 28 pcs | 100 pcs | 252 pcs |
|---|---|---|---|---|---|
| $1.018 | $0.921 | $0.822 | $0.74 | $0.658 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.576 | $0.477 | $0.444 | $0.428 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2065600100 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | RF ANT 1.561/1.575GHZ FLAT PATCH | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 86472 pcs | Data sheet | 2065600100 Datasheet2065600100 Drawing2065600050 Pkg SpecGNSS Antennas Overview2065600050 Prod Spec2065600050 Appl Spec |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Cable (100mm) - U.FL | Series | 206560 |
| RoHS Status | RoHS Compliant | Return Loss | -8dB |
| Other Names | WM21808 | Number of Bands | 3 |
| Mounting Type | Adhesive | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Ingress Protection | - |
| Height (Max) | 0.004" (0.10mm) | Gain | 0.9dBi, 1dBi, 1.37dBi |
| Frequency Range | 1.558GHz ~ 1.61GHz | Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.602GHz | Features | - |
| Detailed Description | 1.561GHz, 1.575GHz, 1.602GHz Beidou, GLONASS, GNSS, GPS Flat Patch RF Antenna 1.558GHz ~ 1.61GHz 0.9dBi, 1dBi, 1.37dBi Cable (100mm) - U.FL Adhesive | Applications | Beidou, GLONASS, GNSS, GPS |
| Antenna Type | Flat Patch |
