2030070001

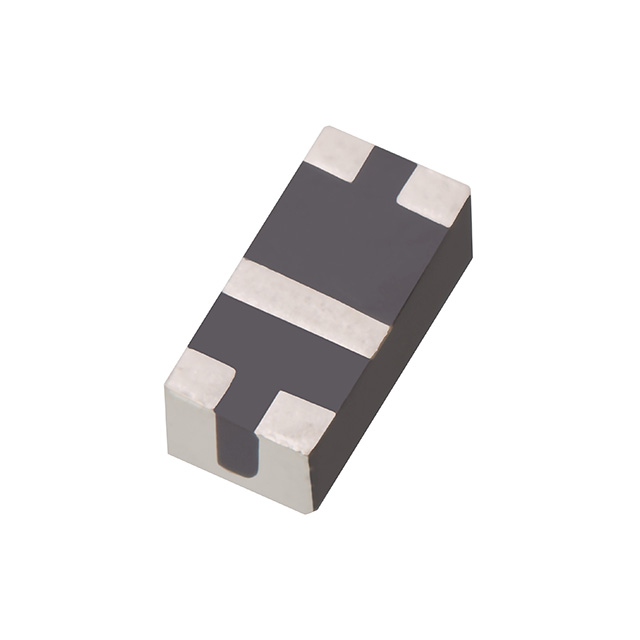

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2030070001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2030070001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2030070001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | RF ANT 1.575GHZ/1.602GHZ CHIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.139 | $0.132 | $0.127 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2030070001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | RF ANT 1.575GHZ/1.602GHZ CHIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 172397 pcs | Data sheet | 2030070001 Drawing2030070001 Pkg Spec2030070001 Prod Spec2030070001 Appl SpecCombo Antennas Datasheet |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | 203007 |
| Return Loss | -10dB | Packaging | Tape & Reel (TR) |
| Other Names | 203007-0001 WM17158TR |
Number of Bands | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.043" (1.10mm) |
| Gain | 1dBi | Frequency Range | 1.561GHz ~ 1.602GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz |
| Frequency Group | Wide Band | Frequency (Center/Band) | 1.575GHz, 1.602GHz, 2.4GHz, 5.4GHz |
| Features | - | Detailed Description | 1.575GHz, 1.602GHz, 2.4GHz, 5.4GHz GNSS, Wi-Fi Chip RF Antenna 1.561GHz ~ 1.602GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz 1dBi Solder Surface Mount |
| Applications | GNSS, Wi-Fi | Antenna Type | Chip |
