2024100002

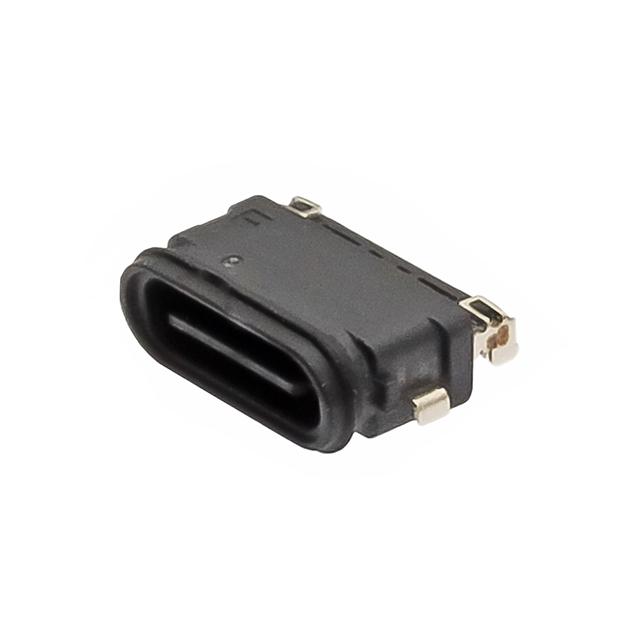

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2024100002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2024100002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2024100002 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 24 PIN TYPE C RECEPTACLE W/LIM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 700 pcs | 1400 pcs | 2100 pcs | 3500 pcs | |
|---|---|---|---|---|---|
| $1.235 | $1.053 | $1.017 | $0.981 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2024100002 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 24 PIN TYPE C RECEPTACLE W/LIM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31374 pcs | Data sheet | 2024100002 Prod Spec2024100002 Pkg Spec2024100002 Datasheet2024100002 DrawingUSB Type C Datasheet |
| Category | Connectors, Interconnects | Voltage - Rated | 30VAC |
| Termination | Solder | Specifications | USB 3.1 (USB 3.1 Gen 2, Superspeed+) |
| Shielding | Shielded | Shell/Shielding Material | Steel, Stainless |
| Series | 202410 | Packaging | Tape & Reel (TR) |
| Other Names | 202410-0002 WM17906TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 | Number of Contacts | 24 |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | Horizontal, Mid Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10000 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | Black |
| Ingress Protection | Waterproof | Gender | Receptacle |
| Features | Pick and Place | Detailed Description | USB - C USB 3.1 (USB 3.1 Gen 2, Superspeed+) Receptacle Connector 24 Position Surface Mount, Right Angle |
| Current Rating | 6A per Contact | Contact Finish | Gold |
| Connector Type | USB - C |
