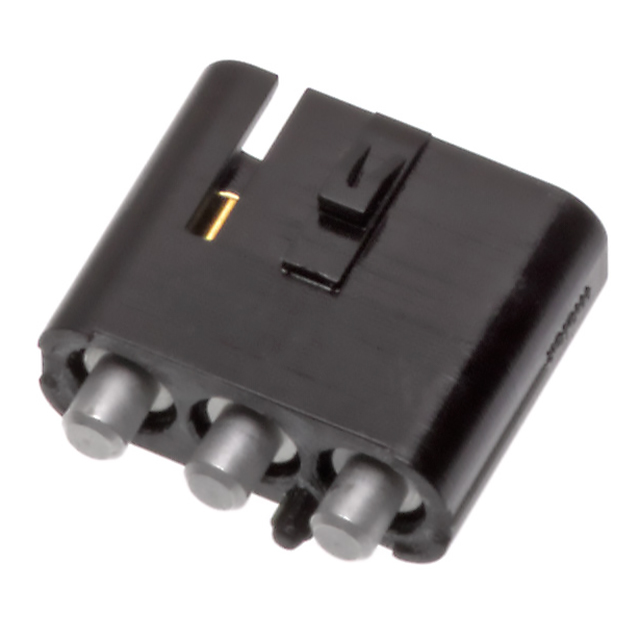

2018421030
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2018421030 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2018421030 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2018421030 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MULTICAT VERT HDR ASSY 1X3 KEY A |
| Lead Free Status / RoHS Status | Vendor undefined / Vendor undefined |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 27 pcs | 54 pcs | |
|---|---|---|---|---|---|
| $6.118 | $5.681 | $5.098 | $4.952 | ||
| 108 pcs | 270 pcs | 513 pcs | |||
| $4.37 | $4.078 | $3.991 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2018421030 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MULTICAT VERT HDR ASSY 1X3 KEY A | Lead Free Status / RoHS Status | Vendor undefined / Vendor undefined |
| Quantity Available | 9061 pcs | Data sheet | 2018400000 Appl Spec2018421030 Drawing2018420000 Pkg SpecMulticat™ Datasheet2018400000 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | 1200V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Multicat 201842 |
| Row Spacing - Mating | - | Pitch - Mating | 0.291" (7.40mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 201842-1030 WM16600 |
Operating Temperature | -40°C ~ 150°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Vendor undefined / Vendor undefined | Insulation Material | Polyetherimide (PEI) |
| Insulation Height | 0.776" (19.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 3 position 0.291" (7.40mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.132" (3.35mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 196.9µin (5.00µm) | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Aerospace, Automotive, Industrial, Medical |
