2009891212

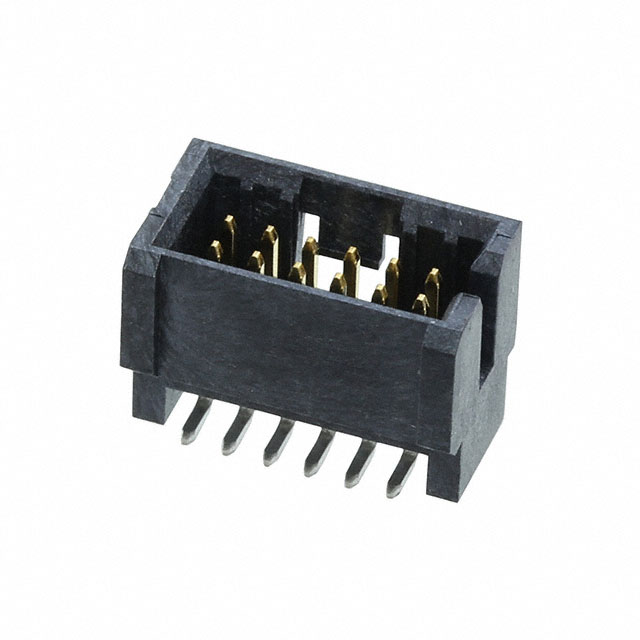

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2009891212 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2009891212 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2009891212 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | SLIM-GRID HEADER, 12 CIRCUITS, S |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2009891212 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | SLIM-GRID HEADER, 12 CIRCUITS, S | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4753 pcs | Data sheet | Slim-Grid Datasheet2009891212 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Slim-Grid 200989 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 200989-1212 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.280" (7.10mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount 12 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Telecommunications |
