19427-0018

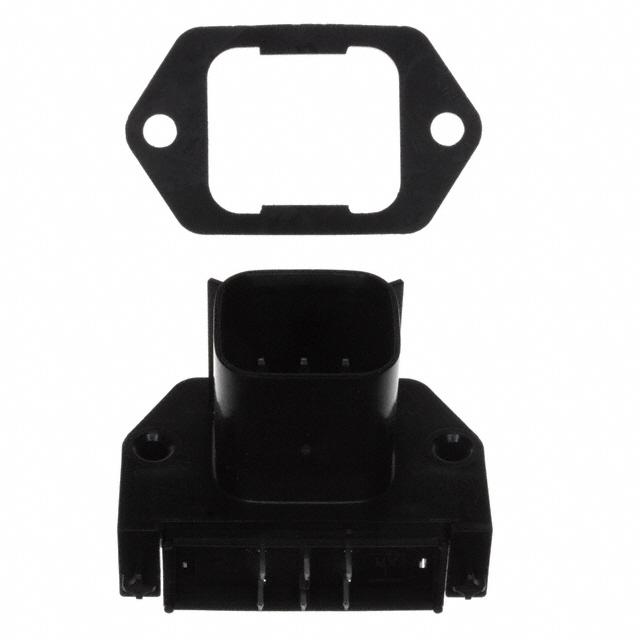

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 19427-0018 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 19427-0018 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 19427-0018 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 6POS RIGHT ANGLE TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.152 | $2.063 | $1.705 | $1.435 | $1.256 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 19427-0018 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 6POS RIGHT ANGLE TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25287 pcs | Data sheet | 19427-0018MX150L™ Industrial BrochureMX150L™ Series Assembly Instr |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MX150L 19427 |
| Row Spacing - Mating | 0.230" (5.84mm) | Pitch - Mating | 0.230" (5.84mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0194270018 194270018 WM17506 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 1.247" (31.67mm) | Insulation Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Board Guide, Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Panel Mount, Through Hole, Right Angle 6 position 0.230" (5.84mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial |
