19164-0005

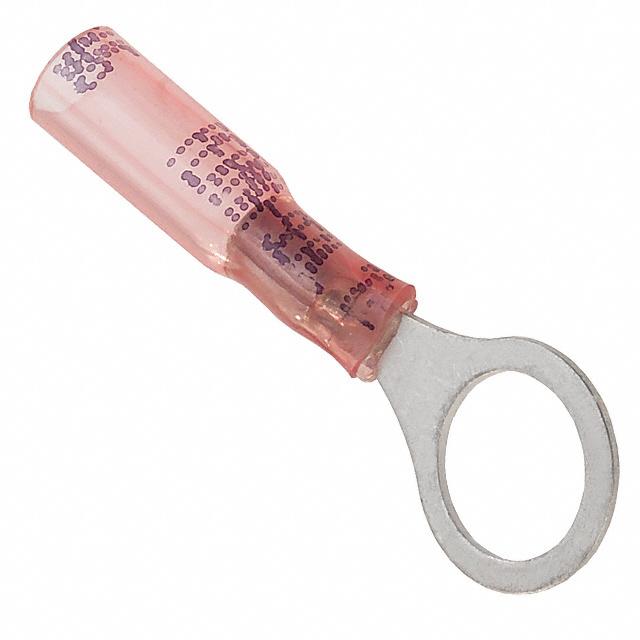

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 19164-0005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 19164-0005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 19164-0005 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RING CIRC 18-22AWG #3/8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.251 | $0.237 | $0.213 | $0.19 | $0.182 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.166 | $0.158 | $0.13 | $0.118 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 19164-0005 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RING CIRC 18-22AWG #3/8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 185338 pcs | Data sheet | 19164-0005 |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.540" (13.72mm) | Thickness | 0.032" (0.81mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 3/8 Stud | Series | Perma-Seal |
| Packaging | Bulk | Other Names | 019164-0005 019164-0005-C 0191640005 0191640005-C 191-64-0005-C 19164-0005-C 191640005 191640005-C SA-226-38 WM18401 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | NiAc | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 1.950" (49.53mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.235" (5.97mm) | Insulation | Insulated with Heat Shrink |
| Features | Serrated Termination | Detailed Description | Ring Terminal Connector 3/8 Stud Circular 18-22 AWG Crimp |
| Contact Material | Copper Alloy | Contact Finish | Tin |
| Color | Red |
