19115-0003
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 19115-0003 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 19115-0003 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 19115-0003 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

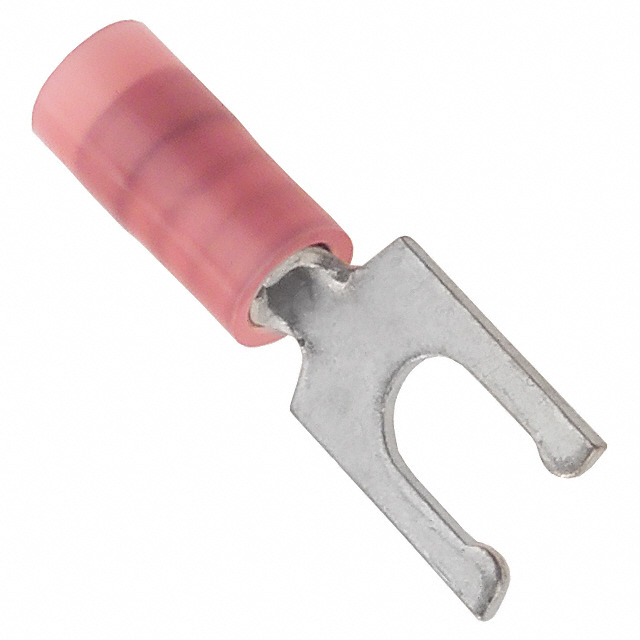

| Description | CONN SPADE TERM 18-22AWG #8 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 19115-0003 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN SPADE TERM 18-22AWG #8 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5021 pcs | Data sheet | 19115-0003 |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.290" (7.37mm) | Tongue Inside Opening | 0.137" (3.48mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 8 Stud | Series | Avikrimp |
| Packaging | Bulk | Other Names | 0191150003 191-15-0003-C 19115-0003-C AA-8191-08 WM18326 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Length - Termination | 0.400" (10.16mm) |
| Length - Ring Center to Termination | 0.235" (5.97mm) | Length - Overall | 0.880" (22.35mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.144" (3.65mm) |
| Insulation | Insulated | Features | - |
| Detailed Description | Red 8 Stud Spade Terminal Connector Crimp 18-22 AWG | Contact Material | Copper |
| Contact Finish | Electro-Tin | Color | Red |
