19070-0024

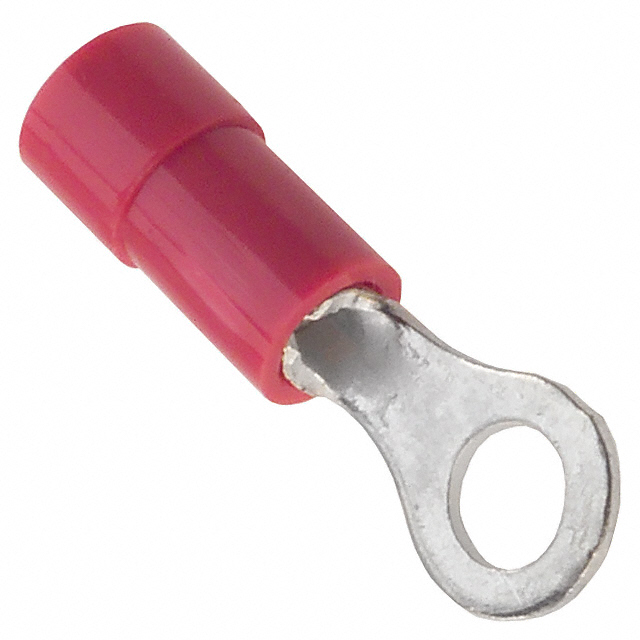

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 19070-0024 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 19070-0024 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 19070-0024 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RING CIRC 18-22AWG #1/4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | ||
|---|---|---|---|---|---|
| $0.074 | $0.071 | $0.067 | |||
| 10500 pcs | 15000 pcs | 37500 pcs | |||
| $0.062 | $0.06 | $0.059 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 19070-0024 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RING CIRC 18-22AWG #1/4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 377520 pcs | Data sheet | 1907000yy Drawing19070-00xxInsulkrimp Rings, Spades Prod Spec |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.477" (12.11mm) | Thickness | 0.028" (0.71mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud | Series | InsulKrimp |
| Packaging | Tape & Reel (TR) | Other Names | 019070-0024 019070-0024-C 0190700024 0190700024-C 19070-0024-C 190700024 190700024-C AA-222-14XT WM18276TR |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 1.060" (26.92mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.145" (3.68mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Ring Terminal Connector 1/4 Stud Circular 18-22 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
