19-09-1156

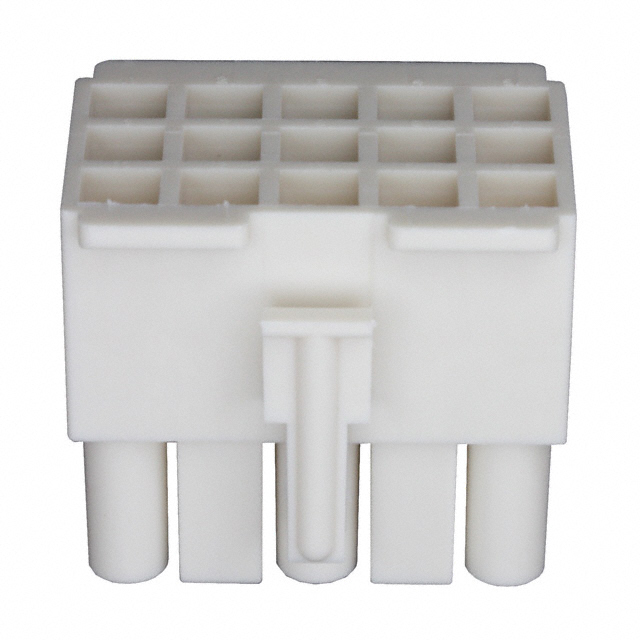

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 19-09-1156 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 19-09-1156 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 19-09-1156 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPTACLE 15POS .093 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.427 | $0.375 | $0.353 | $0.339 | $0.324 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.294 | $0.265 | $0.235 | $0.213 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 19-09-1156 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPTACLE 15POS .093 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111842 pcs | Data sheet | 1909115y Drawing |
| Category | Connectors, Interconnects | Series | 3191 |
| Row Spacing | 0.264" (6.71mm) | Pitch | 0.264" (6.71mm) |
| Packaging | Bulk | Other Names | 0019-09-1156 0019-09-1156-E 0019091156 0019091156-E 19-09-1156-E 19091156 19091156-E 3191-15R1-201 WM1677 |
| Number of Rows | 3 | Number of Positions | 15 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Fastening Type | Latch Lock | Detailed Description | 15 Position Rectangular Housing Connector Receptacle Natural 0.264" (6.71mm) |
| Contact Type | Male or Female | Contact Termination | Crimp |
| Connector Type | Receptacle | Color | Natural |
