1731070101

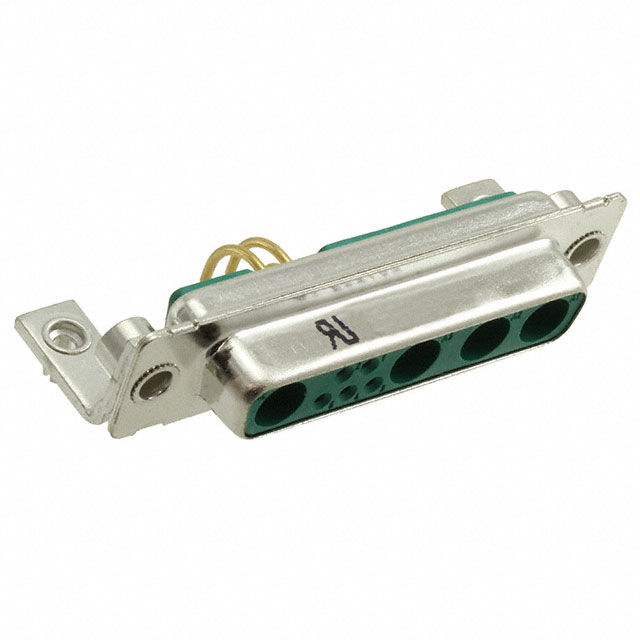

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1731070101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1731070101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1731070101 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN D-SUB RCPT 9POS R/A SOLDER |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.819 | $3.654 | $3.322 | $3.156 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.073 | $2.74 | $2.574 | $2.275 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1731070101 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS R/A SOLDER | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 13713 pcs | Data sheet | Mixed Layout Connector Datasheet |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 | Shell Material, Finish | Steel, Tin Plated |
| Series | 173107 | Packaging | Bulk |
| Other Names | 173107-0101 FM9W4S5-1002 WM12588 |
Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 2 | Number of Positions | 9 (5 + 4 Coax or Power) |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Ingress Protection | - |
| Housing Material | Polyester, Glass Filled | Flange Feature | Board Side (4-40) |
| Features | Mounting Brackets | Detailed Description | 9 (5 + 4 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
| Color | Green | Backset Spacing | - |
