1731070076

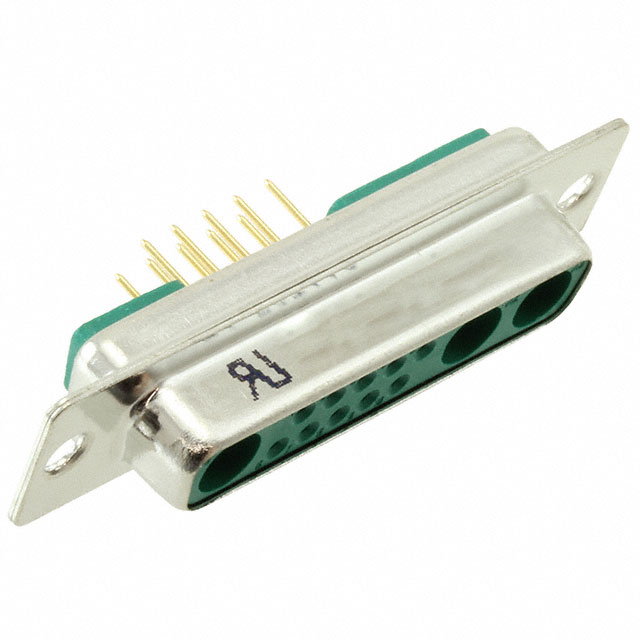

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1731070076 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1731070076 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1731070076 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN D-SUB RCPT 13POS VERT SLDR |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.017 | $2.887 | $2.625 | $2.494 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.428 | $2.165 | $2.034 | $1.798 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1731070076 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN D-SUB RCPT 13POS VERT SLDR | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 17072 pcs | Data sheet | Mixed Layout Connector Datasheet |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) - 13C3, 13W3 | Shell Material, Finish | Steel, Tin Plated |
| Series | 173107 | Packaging | Bulk |
| Other Names | 173107-0076 FM13W3S1-K121 WM12563 |
Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 2 | Number of Positions | 13 (10 + 3 Coax or Power) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Ingress Protection | - |
| Housing Material | Polyester, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 13 (10 + 3 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
| Color | Green | Backset Spacing | - |
