1724480008

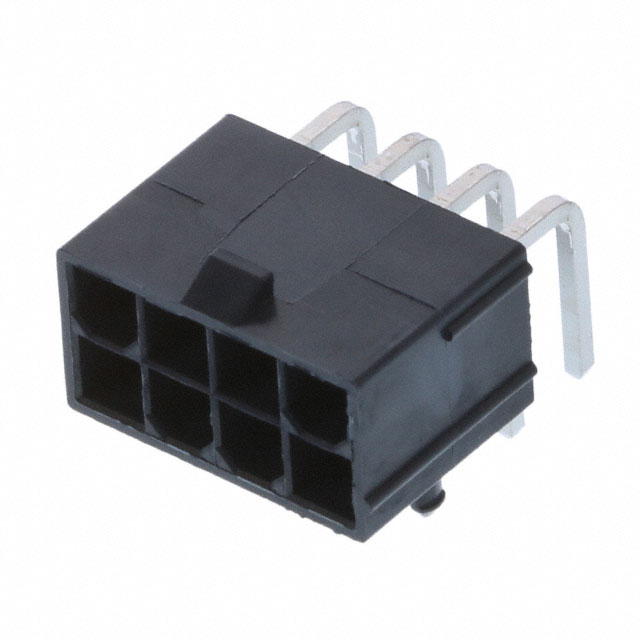

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1724480008 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1724480008 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1724480008 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINIFIT JR RA DRPEGS TIN GLOW WI |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 85 pcs | 170 pcs | 510 pcs | |
|---|---|---|---|---|---|
| $0.583 | $0.475 | $0.453 | $0.378 | ||
| 1020 pcs | 5015 pcs | 10030 pcs | |||
| $0.324 | $0.287 | $0.281 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1724480008 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MINIFIT JR RA DRPEGS TIN GLOW WI | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84536 pcs | Data sheet | 172448x Drawing5569-003 Pkg Spec5556-001 Prod Spec45750-001 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Jr 172448 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 172448-0008 1724480008-ND WM17269 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.378" (9.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock, Glow Wire Compliant |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 8 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Telecommunications |
