1723101303
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1723101303 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1723101303 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1723101303 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | ULTRAFIT RA HDR ASSY 30 AU PLATE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.698 | $0.632 | $0.542 | $0.452 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.387 | $0.343 | $0.335 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1723101303 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | ULTRAFIT RA HDR ASSY 30 AU PLATE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56760 pcs | Data sheet | Ultra-Fit™ Power Connectors Brochure1723101303 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 400V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Ultra-Fit 172310 |
| Row Spacing - Mating | - | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | WM11826 | Operating Temperature | -40°C ~ 120°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.353" (8.96mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.138" (3.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
- Related products
- Related news
Related products
- Part#:
1723101204 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT CONN HDR RA 04CKT - In Stock:
69493
- Part#:
1723101304 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY 30 AU PLATE - In Stock:
93935
- Part#:
1723101308 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY 30 AU PLATE - In Stock:
51359
- Part#:
1723101202 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT CONN HDR RA 02CKT - In Stock:
98291
- Part#:
1723102104 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY TIN PLATED - In Stock:
132417
- Part#:
1723101206 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT CONN HDR RA 06CKT - In Stock:
78094
- Part#:
1723102103 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY TIN PLATED - In Stock:
140904
- Part#:
1723101205 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY 15 AU PLATE - In Stock:
65828
- Part#:
1723101208 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY 15 AU PLATE - In Stock:
80273
- Part#:
1723102102 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY TIN PLATED - In Stock:
167199
- Part#:
1723101305 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY 30 AU PLATE - In Stock:
71072
- Part#:
1723101306 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY 30 AU PLATE - In Stock:
68299
- Part#:
1723101307 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY 30 AU PLATE - In Stock:
62776
- Part#:
1723102105 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY TIN PLATED - In Stock:
100050
- Part#:
1723101207 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY 15 AU PLATE - In Stock:
79697
- Part#:
1723102106 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY TIN PLATED - In Stock:
99240
- Part#:
1723101302 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY 30 AU PLATE - In Stock:
64753
- Part#:
1723101107 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY TIN PLATED - In Stock:
84985
- Part#:
1723101108 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
ULTRAFIT RA HDR ASSY TIN PLATED - In Stock:
84406
- Part#:

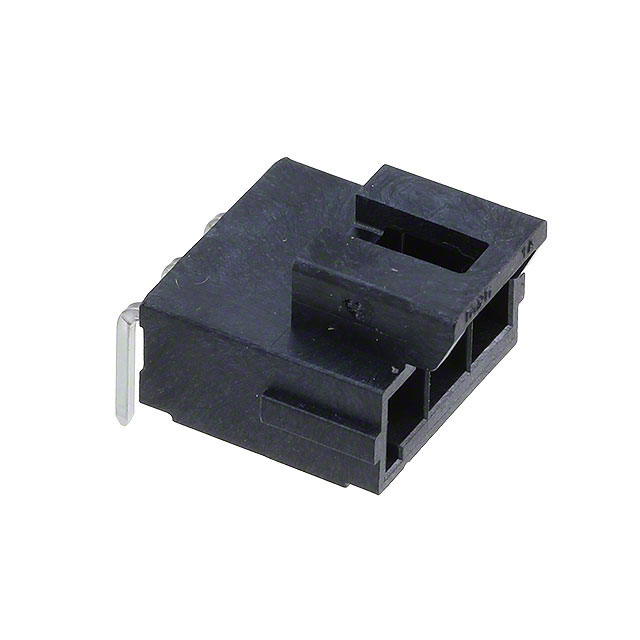

1723101203 - Manufacturers:
