1722871107

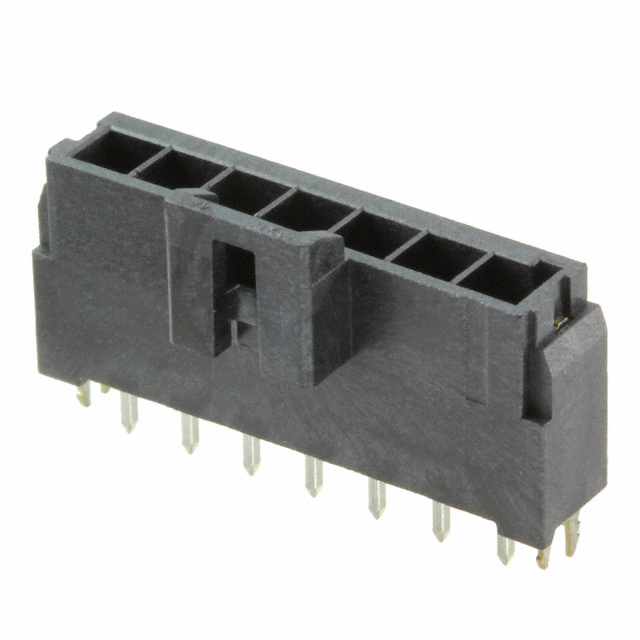

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1722871107 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1722871107 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1722871107 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | ULTRAFIT VERT TIN PLATED BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.54 | $0.489 | $0.419 | $0.349 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.299 | $0.265 | $0.259 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1722871107 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | ULTRAFIT VERT TIN PLATED BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89543 pcs | Data sheet | 1722871107 DrawingUltra-Fit™ Power Connectors Brochure |
| Category | Connectors, Interconnects | Voltage Rating | 400V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Ultra-Fit 172287 |
| Row Spacing - Mating | - | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | WM11706 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 26.99mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.465" (11.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 7 position 0.138" (3.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
