1718561002

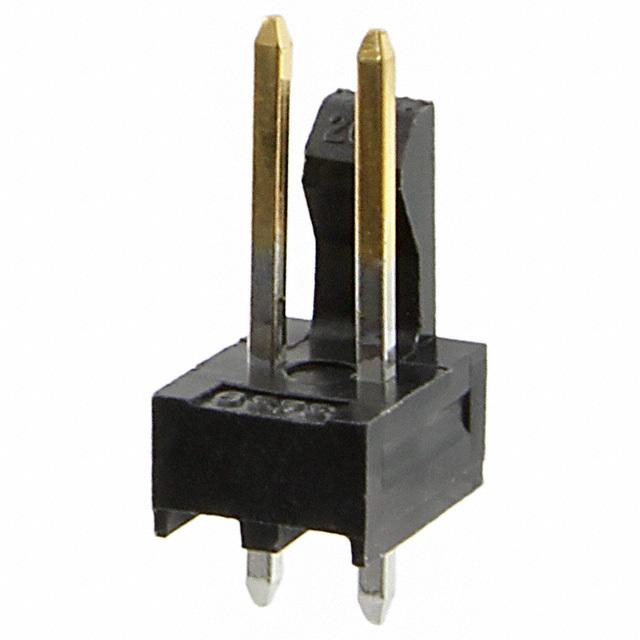

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1718561002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1718561002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1718561002 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | KK RPC 100 HDR FRLK VERT 02 CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.139 | $0.132 | $0.092 | $0.079 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.066 | $0.056 | $0.053 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1718561002 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | KK RPC 100 HDR FRLK VERT 02 CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 445486 pcs | Data sheet | 171856 Series Drawing171856-0001 Prod Spec171856,57 Brief |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 1 Wall | Series | KK 171856 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.510" (12.95mm) |
| Other Names | 171856-1002 WM10286 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.322" (8.18mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 2 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.092" (2.34mm) | Contact Length - Mating | 0.293" (7.45mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Telecommunications |
