1718143006

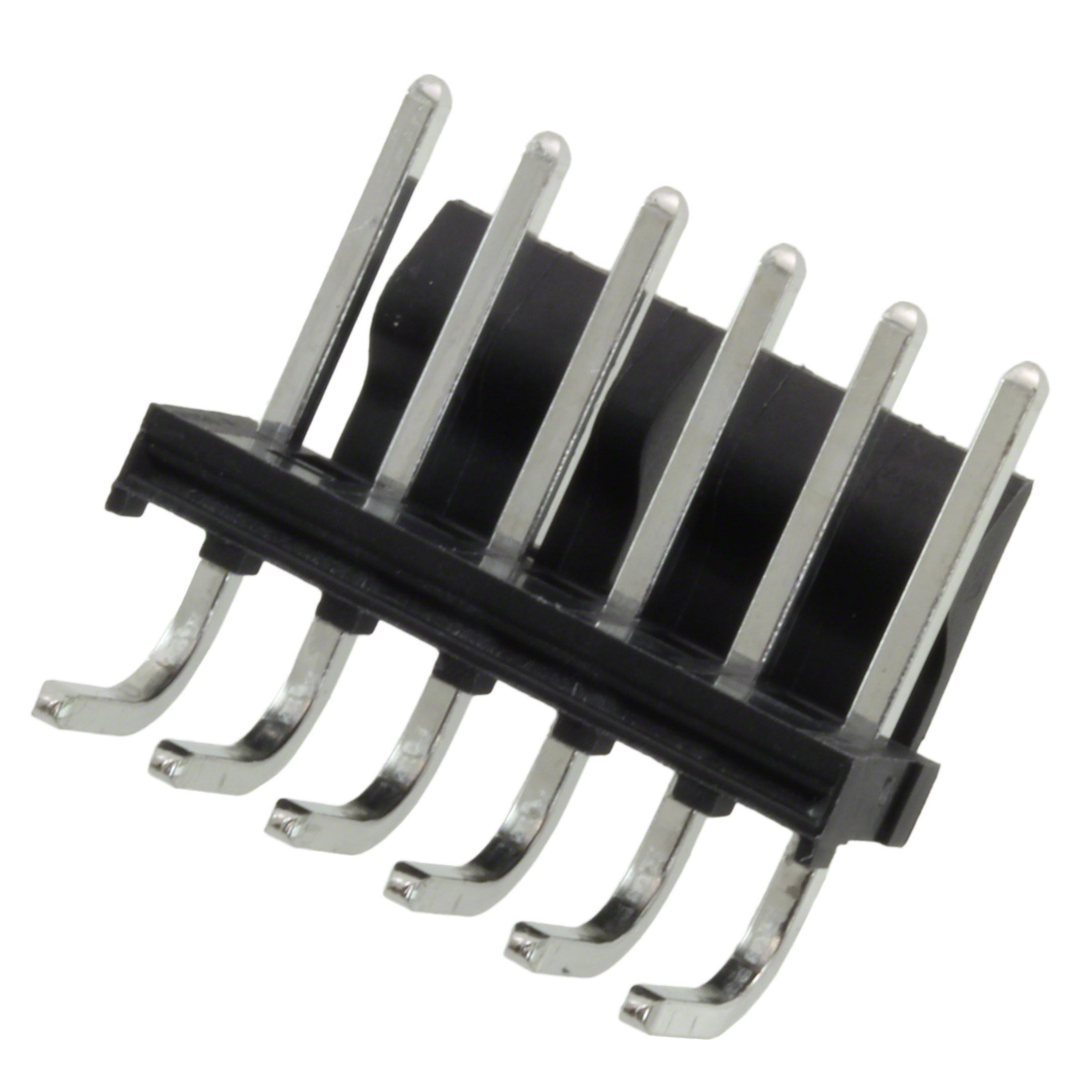

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1718143006 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1718143006 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1718143006 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | KK RPC 156 HDR FRRA 06 CKT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 120 pcs | 360 pcs | 600 pcs | 840 pcs | |
|---|---|---|---|---|---|
| $0.476 | $0.431 | $0.397 | $0.386 | ||
| 1200 pcs | 3000 pcs | 6000 pcs | 12000 pcs | ||
| $0.34 | $0.318 | $0.302 | $0.295 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1718143006 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | KK RPC 156 HDR FRRA 06 CKT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72483 pcs | Data sheet | KK® 396 RPC Conn System1718143006 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 1 Wall | Series | KK 171814 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 171814-3006 WM10571TR |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.394" (10.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.156" (3.96mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.100" (2.54mm) | Contact Length - Mating | 0.446" (11.33mm) |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
