1714001038

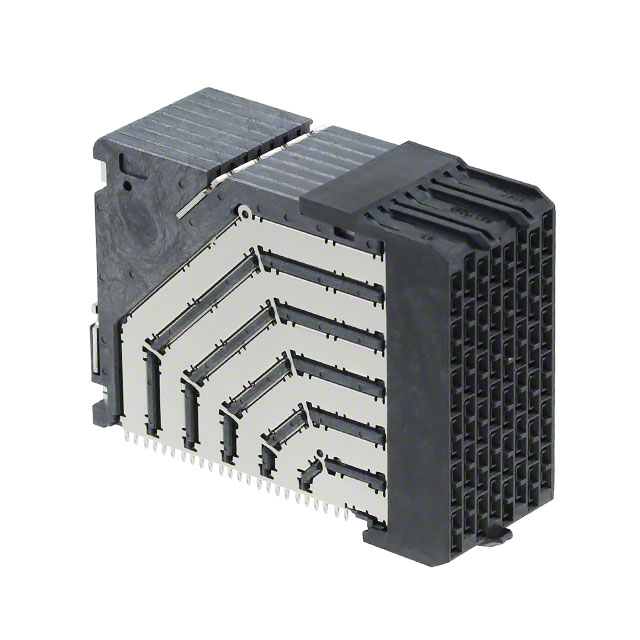

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1714001038 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1714001038 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1714001038 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 6PX8C DC ASSY UNGUIDED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $15.113 | $13.644 | $13.072 | |||
| 64 pcs | 128 pcs | 256 pcs | |||
| $12.255 | $11.846 | $11.193 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1714001038 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 6PX8C DC ASSY UNGUIDED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3497 pcs | Data sheet | Impel™ Backplane Interconnect SystemImpel™ Interconnect Prod Spec1714001038 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Press-Fit | Series | Impel 171400 |
| Pitch | 0.075" (1.91mm) | Packaging | Tray |
| Other Names | 171400-1038 WM10778 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 12 | Number of Positions Loaded | All |
| Number of Positions | - | Number of Columns | 8 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Shielded |
| Detailed Description | 6PX8C DC ASSY UNGUIDED | Current Rating | - |
| Contact Layout, Typical | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Usage | Daughtercard |
| Connector Type | Receptacle, Female Sockets and Blade Sockets | Connector Style | Impel |
| Color | Black |
