1713951807

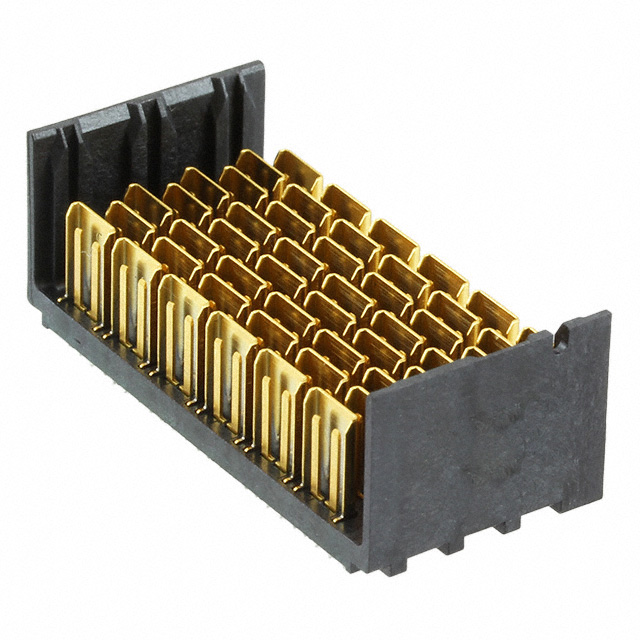

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1713951807 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1713951807 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1713951807 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 6PX8C BP ASSY 4.90-0.36 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 192 pcs | ||||
|---|---|---|---|---|---|
| $4.534 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1713951807 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 6PX8C BP ASSY 4.90-0.36 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8717 pcs | Data sheet | Impel™ Backplane Interconnect SystemImpel™ Interconnect Prod Spec1713951807 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Press-Fit | Series | Impel 171395 |
| Pitch | 0.075" (1.91mm) | Packaging | Tray |
| Other Names | 171395-1807 WM10777 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | - | Number of Positions Loaded | All |
| Number of Positions | - | Number of Columns | 8 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Shielded |
| Detailed Description | 6PX8C BP ASSY 4.90-0.36 | Current Rating | - |
| Contact Layout, Typical | 48 Differential Pairs | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Usage | Backplane |
| Connector Type | Header, Male Pins and Blades | Connector Style | Impel |
| Color | Black |
