1713351807

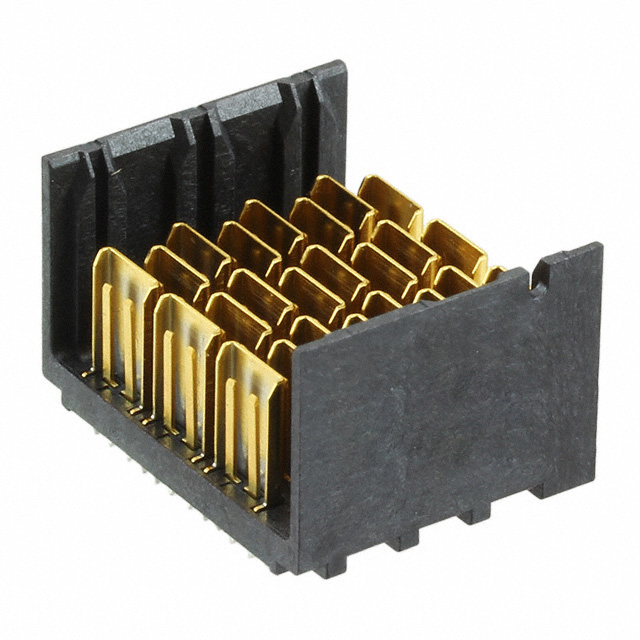

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1713351807 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1713351807 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1713351807 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 3PX8C BP ASSY 4.90 0.36 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.937 | $3.579 | $3.49 | $3.221 | ||
| 100 pcs | 250 pcs | 512 pcs | 1024 pcs | ||
| $3.042 | $2.774 | $2.595 | $2.38 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1713351807 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 3PX8C BP ASSY 4.90 0.36 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12646 pcs | Data sheet | Impel™ Backplane Interconnect SystemImpel™ Interconnect Prod Spec1713351807 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Press-Fit | Series | Impel 171335 |
| Pitch | 0.075" (1.91mm) | Packaging | Tray |
| Other Names | 171335-1807 WM10776 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 9 | Number of Positions Loaded | All |
| Number of Positions | - | Number of Columns | 8 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Shielded |
| Detailed Description | 3PX8C BP ASSY 4.90 0.36 | Current Rating | - |
| Contact Layout, Typical | 24 Differential Pairs | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Usage | Backplane |
| Connector Type | Header, Male Pins and Blades | Connector Style | Impel |
| Color | - |
