1703401020

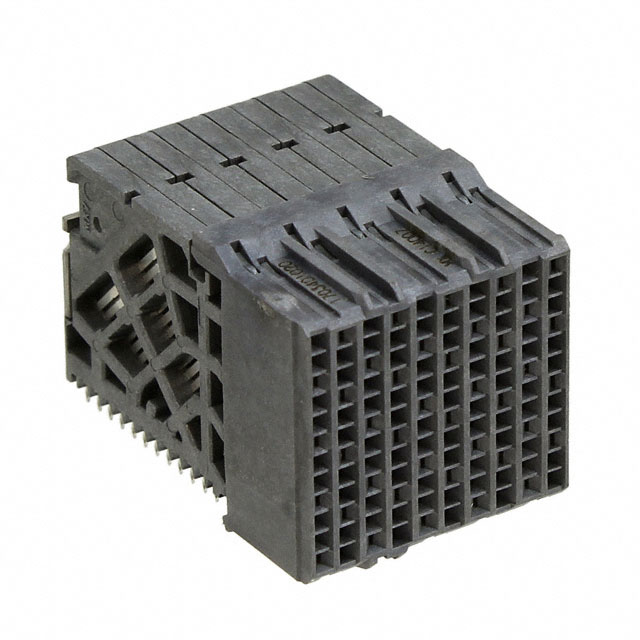

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1703401020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1703401020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1703401020 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | IMPACT 85 DC 4X10 OPEN SN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 252 pcs | ||||
|---|---|---|---|---|---|
| $4.805 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1703401020 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | IMPACT 85 DC 4X10 OPEN SN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8097 pcs | Data sheet | 1703401x DrawingImpact Plus 85Ω Backplane Conn. System |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Press-Fit | Series | Impact 170340 |
| Pitch | - | Packaging | Tray |
| Other Names | WM10348 | Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 12 | Number of Positions Loaded | - |
| Number of Positions | 120 | Number of Columns | 10 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | - | Contact Layout, Typical | 40 Differential Pairs |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Receptacle, Female Sockets |
| Connector Style | Impact | Color | Gray |
