1600130023

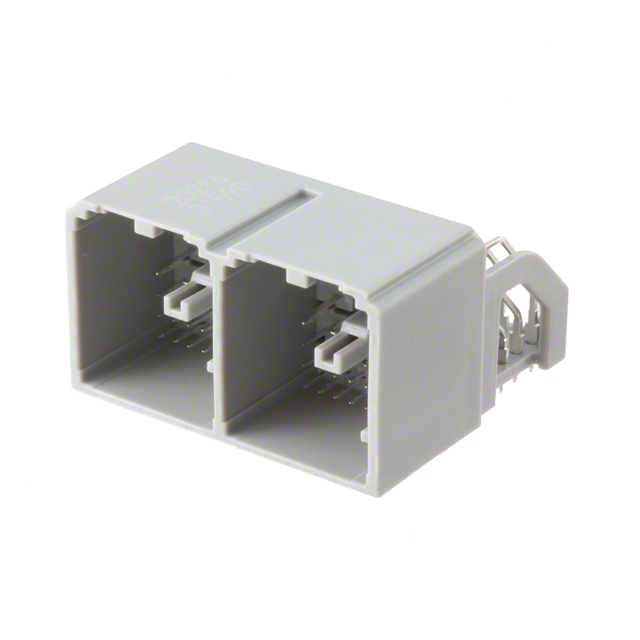

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1600130023 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1600130023 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1600130023 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 56POS KEY 2&3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 351 pcs | 702 pcs | 1053 pcs |
|---|---|---|---|---|---|
| $1.557 | $1.496 | $1.091 | $1.059 | $0.904 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1600130023 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 56POS KEY 2&3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36379 pcs | Data sheet | 1600130023 DrawingPS-160013-001 Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | stAK50h 160013 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 160013-0023 1600130023-ND WM20729 |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | - | Number of Positions Loaded | All |
| Number of Positions | 56 (28 + 28) | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 HB |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | 0.902" (22.90mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 56 (28 + 28) position |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.083" (2.11mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
