1511200404

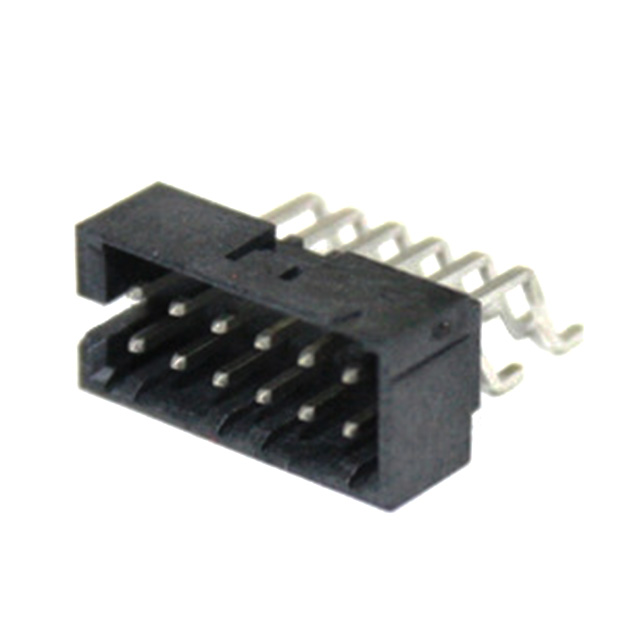

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1511200404 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1511200404 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1511200404 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MGRID SHRD HDR RA SMT/TAPE 2.5SN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.915 | $0.83 | $0.711 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1511200404 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MGRID SHRD HDR RA SMT/TAPE 2.5SN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49355 pcs | Data sheet | 1511200404 DrawingMilli-Grid™ Shrouded Conn Datasheet151117-0001 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Milli-Grid 151120 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | WM16126CT | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.248" (6.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Glow Wire Compliant, Pick and Place | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.141" (3.60mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive, General Purpose, Telecommunications |
