1511181004

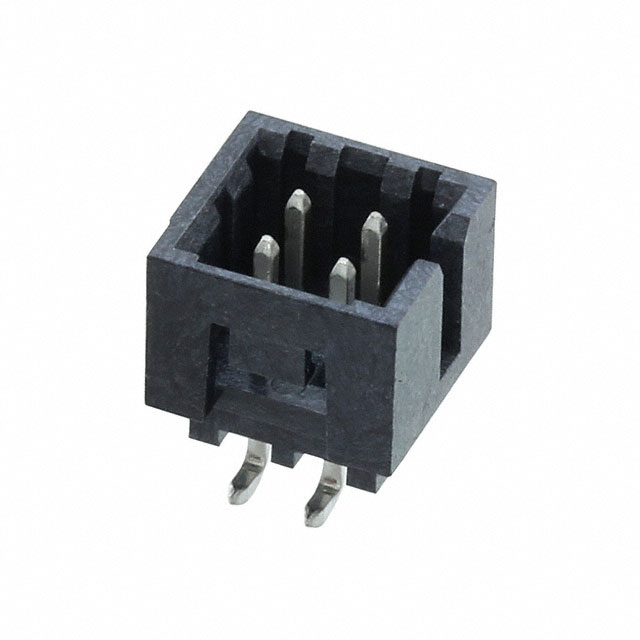

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1511181004 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1511181004 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1511181004 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MGRID SHRD HDR SMT/OPEG&CAP 2.5S |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 80 pcs | 160 pcs | 560 pcs | |
|---|---|---|---|---|---|
| $0.312 | $0.248 | $0.238 | $0.194 | ||
| 1040 pcs | 5040 pcs | 10000 pcs | |||
| $0.173 | $0.151 | $0.144 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1511181004 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MGRID SHRD HDR SMT/OPEG&CAP 2.5S | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 143334 pcs | Data sheet | Milli-Grid™ Shrouded Conn Datasheet151117-0001 Prod Spec1511181004 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Milli-Grid 151118 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 151118-1004 WM16125 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.252" (6.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Glow Wire Compliant |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 4 position 0.079" (2.00mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.142" (3.61mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Telecommunications |
