1510134008

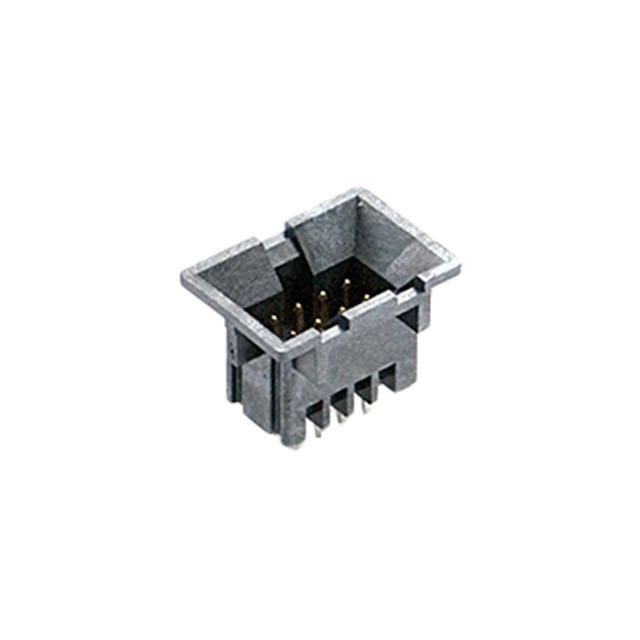

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1510134008 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1510134008 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1510134008 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2MM VRT HDR CONN 0.05AULF 8CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.467 | $0.41 | $0.354 | $0.29 | ||
| 1400 pcs | 5600 pcs | 11200 pcs | |||
| $0.258 | $0.225 | $0.214 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1510134008 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2MM VRT HDR CONN 0.05AULF 8CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 100013 pcs | Data sheet | 1510134008 Drawing151013-0002 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Milli-Grid BMI 151013 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 151013-4008 1510134008-ND WM16069 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.408" (10.36mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 8 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.102" (2.60mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) | Contact Finish Thickness - Mating | 2.00µin (0.051µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Telecommunications |
