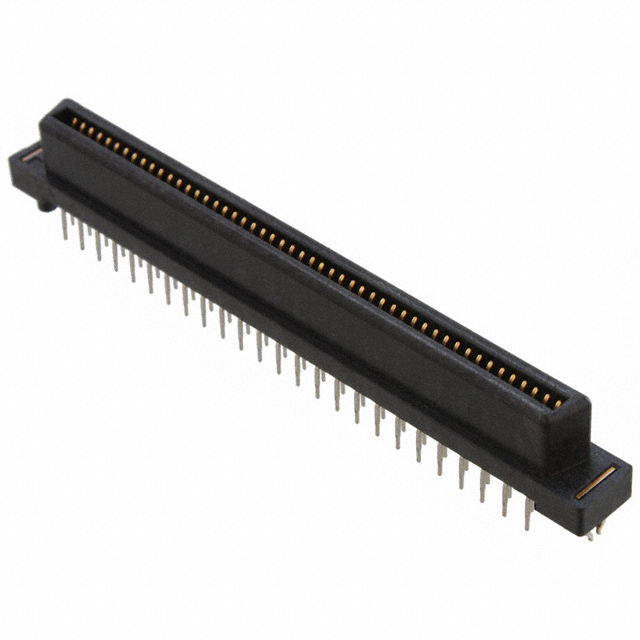

15-92-1100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15-92-1100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15-92-1100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15-92-1100 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPT 100POS VERT .050" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.263 | $3.121 | $2.837 | $2.696 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.625 | $2.341 | $2.199 | $1.944 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15-92-1100 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPT 100POS VERT .050" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18867 pcs | Data sheet | 15-92-1zzz Drawing |
| Category | Connectors, Interconnects | Type | - |
| Termination | Solder | Series | EBBI 71660 |
| Other Names | 0015-92-1100 0015-92-1100-E 0015921100 0015921100-E 015-92-1100 15-92-1100-E 15-92-1100-ND 15921100 15921100-E 716601100 SDA-71660-1100 WM6400 |
Number of Rows | 2 |
| Number of Positions | 100 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Flange Feature | - |
| Features | Board Guide, Board Lock | Detailed Description | 100 Position Receptacle Connector Through Hole Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Connector Style | Outer Shroud Contacts |
