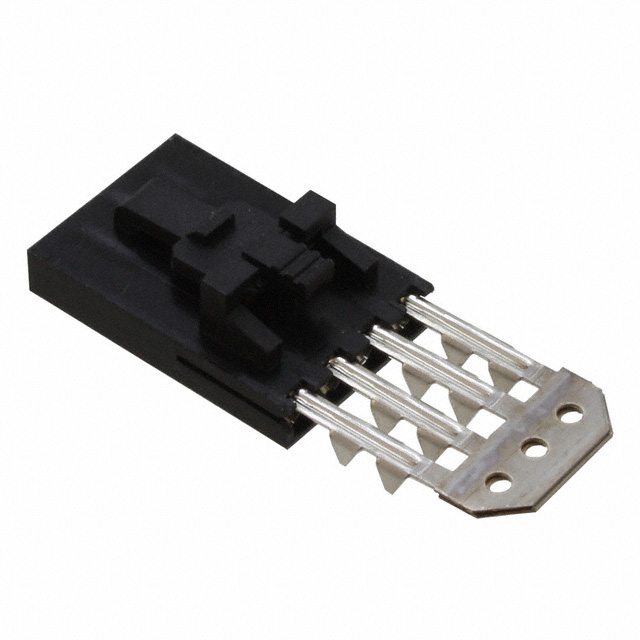

15-38-8040
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15-38-8040 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15-38-8040 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15-38-8040 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN CIC FFC RCPT 4POS 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.454 | $0.399 | $0.375 | $0.359 | $0.344 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.312 | $0.281 | $0.25 | $0.227 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15-38-8040 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN CIC FFC RCPT 4POS 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103705 pcs | Data sheet | 15-38-8xx0 |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | IDC | Series | SL 70430 |
| Pitch | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 0015-38-8040 0015-38-8040-E 0015388040 0015388040-E 15-38-8040-E 15-38-8040-ND 15388040 15388040-E 70430-0143 WM4583 |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 4 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 25 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 5 Weeks |
| Locking Feature | Latch Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyester, Glass Filled | Housing Color | Black |
| Height Above Board | - | Flat Flex Type | CIC, FFC |
| Features | - | FFC, FCB Thickness | 0.13 ~ 0.28mm, 0.30mm |
| Detailed Description | 4 Position CIC, FFC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line) | Current Rating | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 150.0µin (3.81µm) |
| Contact Finish | Tin | Connector/Contact Type | Receptacle |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
