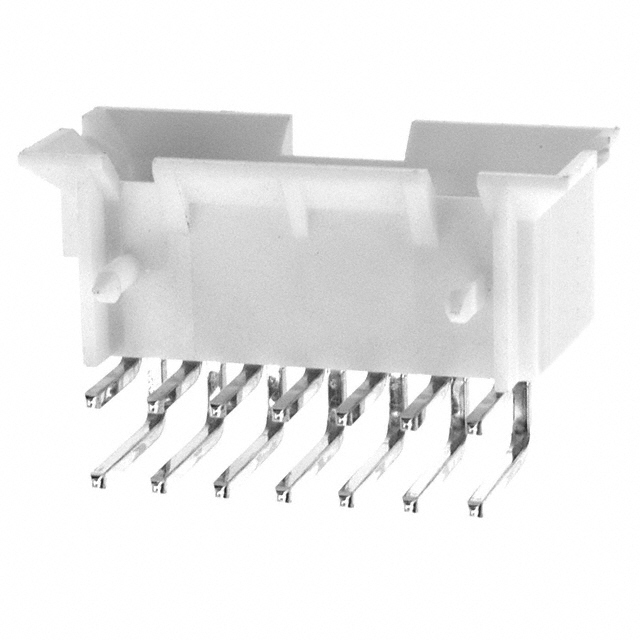

15-24-9144
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15-24-9144 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15-24-9144 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15-24-9144 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 14POS 4.2MM R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.225 | $1.176 | $0.98 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.833 | $0.71 | $0.637 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15-24-9144 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 14POS 4.2MM R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56447 pcs | Data sheet | 15-24-6xx0,9xx(3-5) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit BMI 42404 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0015-24-9144 0015-24-9144-E 0015249144 0015249144-E 15-24-9144-E 15249144 15249144-E A-42404-14B1 WM17725 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.591" (15.00mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 14 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Medical, Telecommunications |
