1461860300

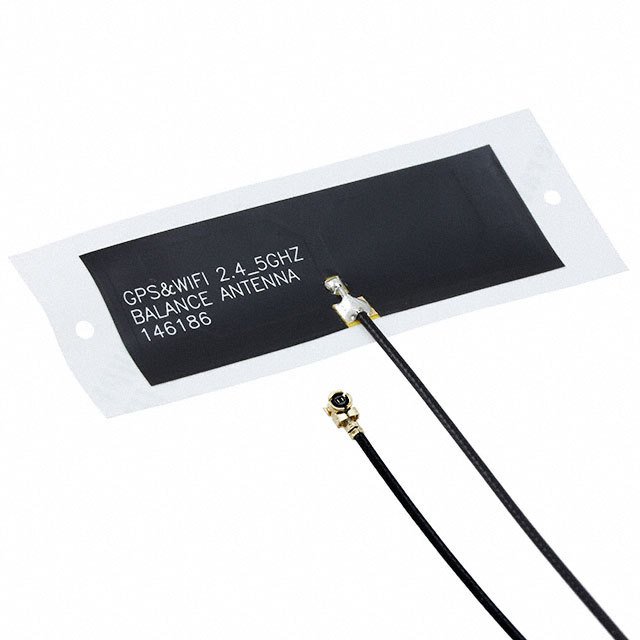

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1461860300 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1461860300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1461860300 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | RF ANT 1.561/1.575GHZ FLAT 300MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $1.229 | $1.096 | $0.986 | $0.899 | $0.811 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.728 | $0.614 | $0.583 | $0.561 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1461860300 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | RF ANT 1.561/1.575GHZ FLAT 300MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66525 pcs | Data sheet | 1461860300 DatasheetGPS_WiFi Balance Antenna Appl Spec146186 Series Flex Antenna Prod SheetGPS_WiFi Balance Antenna Prod Spec1461860300 Drawing |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Cable (300mm) - U.FL | Series | 146186 |
| Return Loss | -10dB | Power - Max | 2W |
| Packaging | Bulk | Other Names | 14618-60300 WM12393 |
| Number of Bands | 5 | Mounting Type | Adhesive |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.004" (0.10mm) | Gain | 2.4dBi, 3dBi, 3.7dBi |
| Frequency Range | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | Features | - |
| Detailed Description | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz BeiDou, GLONASS, WiMax, WLAN, Wi-Fi Flat Patch RF Antenna 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz 2.4dBi, 3dBi, 3.7dBi Cable (300mm) - U.FL Adhesive | Applications | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
| Antenna Type | Flat Patch |
