1053141204

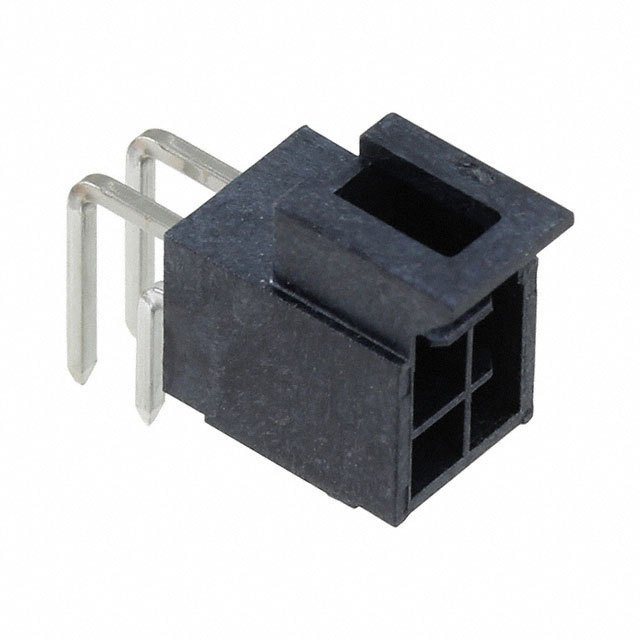

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1053141204 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1053141204 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1053141204 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | NANOFIT HDR RA DLR 4CKT 15AU BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 300 pcs | 600 pcs | |
|---|---|---|---|---|---|
| $0.49 | $0.432 | $0.339 | $0.305 | ||
| 1200 pcs | 5100 pcs | 10200 pcs | |||
| $0.271 | $0.237 | $0.225 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1053141204 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | NANOFIT HDR RA DLR 4CKT 15AU BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91280 pcs | Data sheet | 105314 Series Drawing105300-100 Prod SpecNano-Fit™ Power Connector Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Nano-Fit 105314 |
| Row Spacing - Mating | 0.098" (2.50mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 105314-1204 WM14976 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.247" (6.28mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.098" (2.50mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 59.0µin (1.50µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
