1053111304

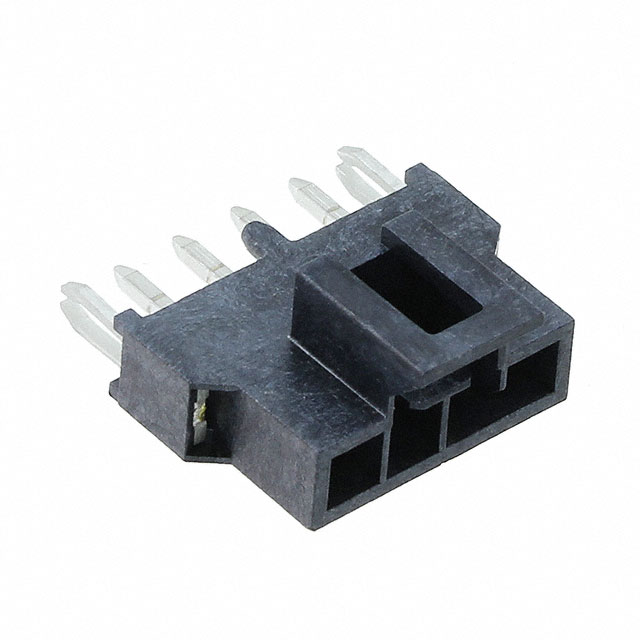

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1053111304 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1053111304 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1053111304 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | NANO-FIT HDR VT SGL FRK 4CKT 30A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 126 pcs | 504 pcs | |
|---|---|---|---|---|---|
| $0.522 | $0.474 | $0.406 | $0.338 | ||
| 1008 pcs | 5040 pcs | 10080 pcs | |||
| $0.29 | $0.257 | $0.251 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1053111304 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | NANO-FIT HDR VT SGL FRK 4CKT 30A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81862 pcs | Data sheet | Nano-Fit™ Power Connector Datasheet105311 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Nano-Fit 105311 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 105311-1304 WM15091 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Material Flammability Rating | - | Mated Stacking Heights | 21.30mm |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.356" (9.05mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Board Lock | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Through Hole 4 position 0.098" (2.50mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 59.0µin (1.50µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
