1053102206
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1053102206 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1053102206 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1053102206 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | NANO-FIT HDR VT DLR KNK 6CKT 15A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 204 pcs | 612 pcs | |
|---|---|---|---|---|---|
| $0.625 | $0.568 | $0.487 | $0.405 | ||
| 1020 pcs | 5100 pcs | 10200 pcs | |||
| $0.348 | $0.308 | $0.301 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1053102206 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | NANO-FIT HDR VT DLR KNK 6CKT 15A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64065 pcs | Data sheet | Nano-Fit™ Power Connector Datasheet105310 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Nano-Fit 105310 |
| Row Spacing - Mating | 0.098" (2.50mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 105310-2206 WM15069 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Material Flammability Rating | - | Mated Stacking Heights | 21.30mm |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.356" (9.05mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Through Hole 6 position 0.098" (2.50mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 59.0µin (1.50µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
- Related products
- Related news
Related products
- Part#:

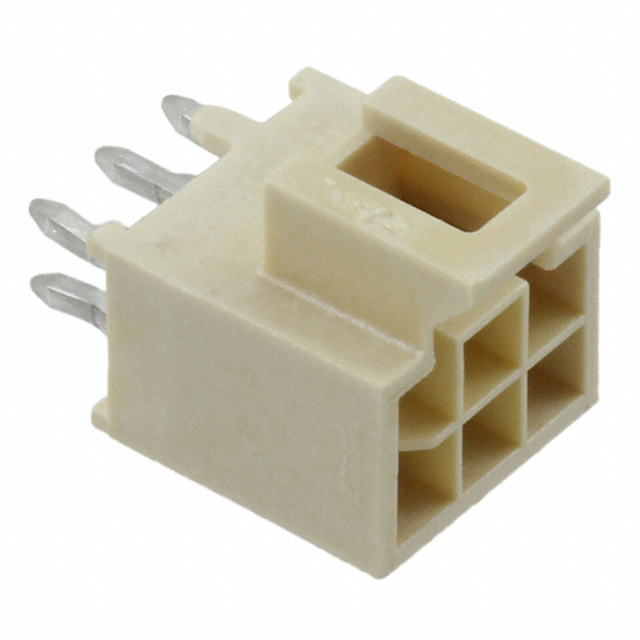

1053102106 - Manufacturers:
