1053101204

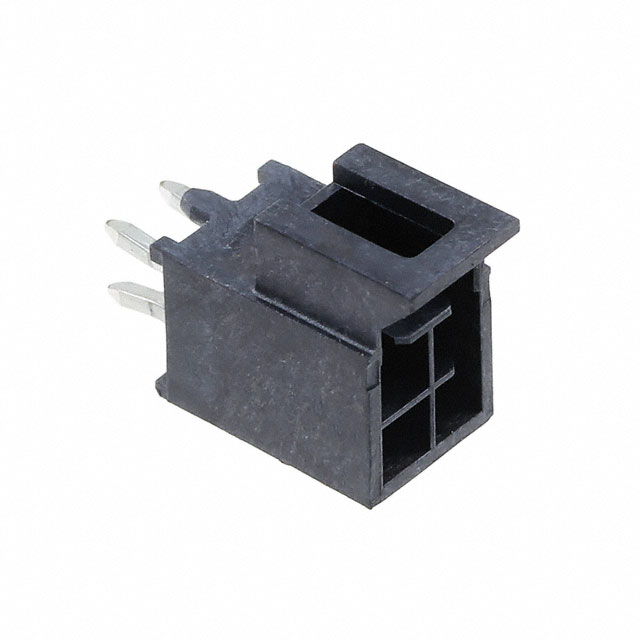

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1053101204 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1053101204 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1053101204 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | NANOFIT HDR VT DLR KNK 4CKT 15AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 210 pcs | 630 pcs | |
|---|---|---|---|---|---|
| $0.474 | $0.417 | $0.36 | $0.294 | ||
| 1050 pcs | 5040 pcs | 10080 pcs | |||
| $0.262 | $0.229 | $0.217 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1053101204 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | NANOFIT HDR VT DLR KNK 4CKT 15AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88022 pcs | Data sheet | 105310 Series DrawingNano-Fit™ Power Connector Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Nano-Fit 105310 |
| Row Spacing - Mating | 0.098" (2.50mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 105310-1204 WM14969 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Mated Stacking Heights | 21.30mm | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.356" (9.05mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 4 position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 59.0µin (1.50µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
