1040910520

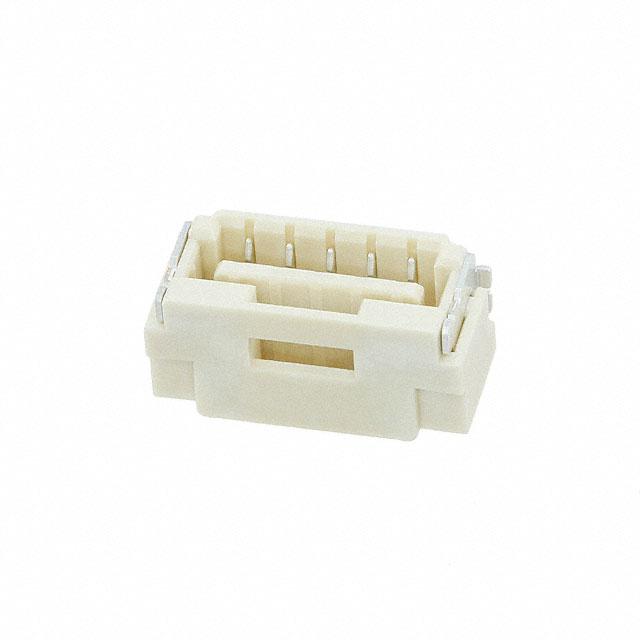

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1040910520 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1040910520 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1040910520 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 1.25 WTB R/A CONN. 5P HEADER ASS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.543 | $0.493 | $0.422 | $0.352 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1040910520 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 1.25 WTB R/A CONN. 5P HEADER ASS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67846 pcs | Data sheet | 1040910520 Drawing104091,2 Packaging Spec10409x-xx, 104521-6001 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | IllumiMate 104091 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | WM12339CT | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free |
| Insulation Height | 0.159" (4.05mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm) |
| Current Rating | - | Contact Type | Non-Gendered |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Medical |
