10-89-1301
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10-89-1301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10-89-1301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10-89-1301 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

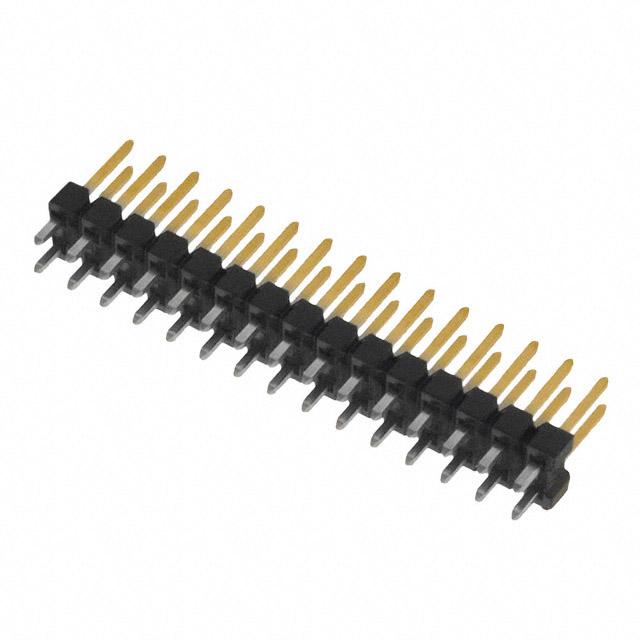

| Description | CONN HEADER 30POS .100 VERT GOLD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10-89-1301 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 30POS .100 VERT GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4435 pcs | Data sheet | 10-89-1041 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | C-Grid 8624 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.437" (11.10mm) |
| Other Names | 0010-89-1301 0010-89-1301-E 0010891301 0010891301-E 10-89-1301-E 10-89-1301-ND 10891301 10891301-E WM6830 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.090" (2.29mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 30 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.107" (2.71mm) |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
